Reliable 1D Laser Scanning for Retail & Hospitality

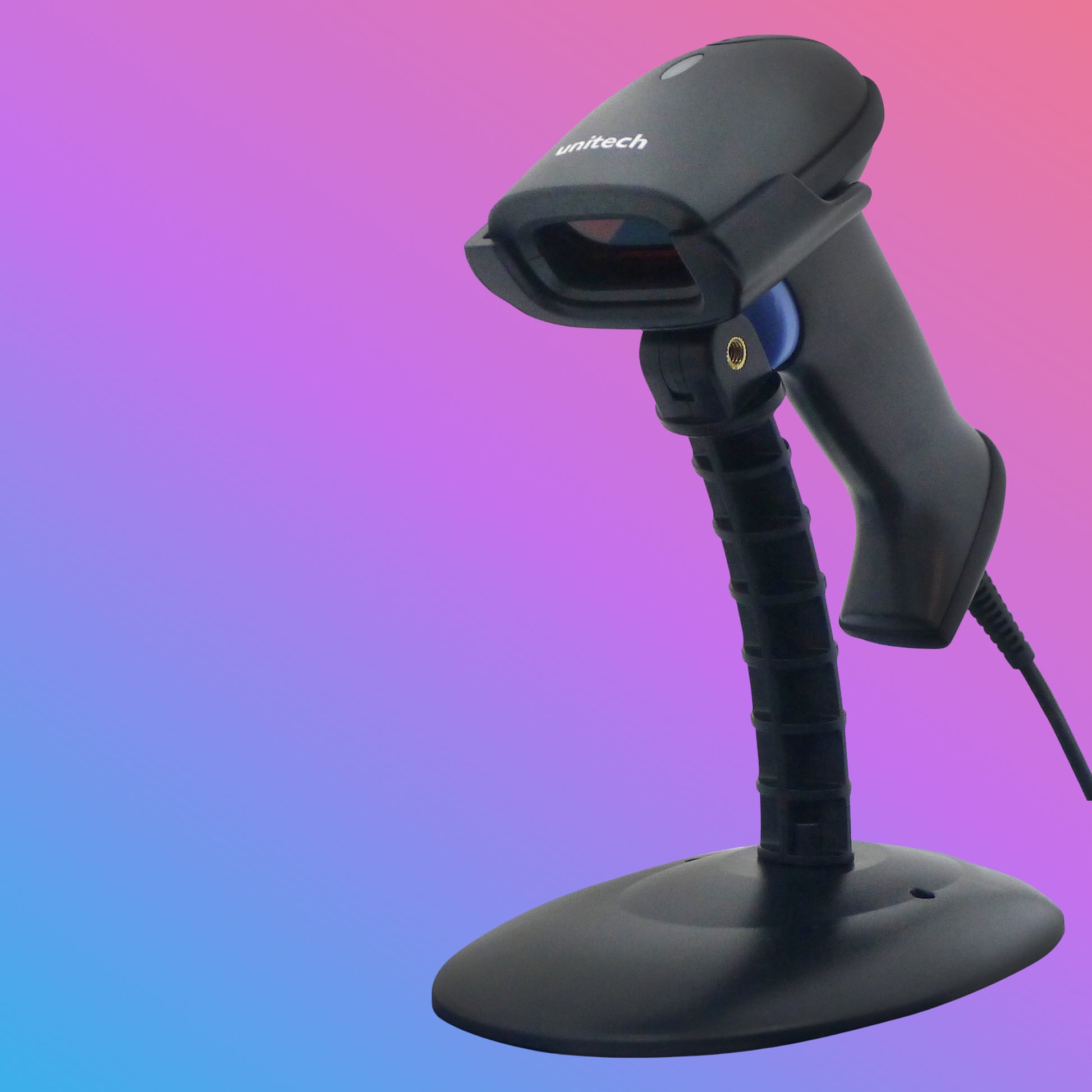

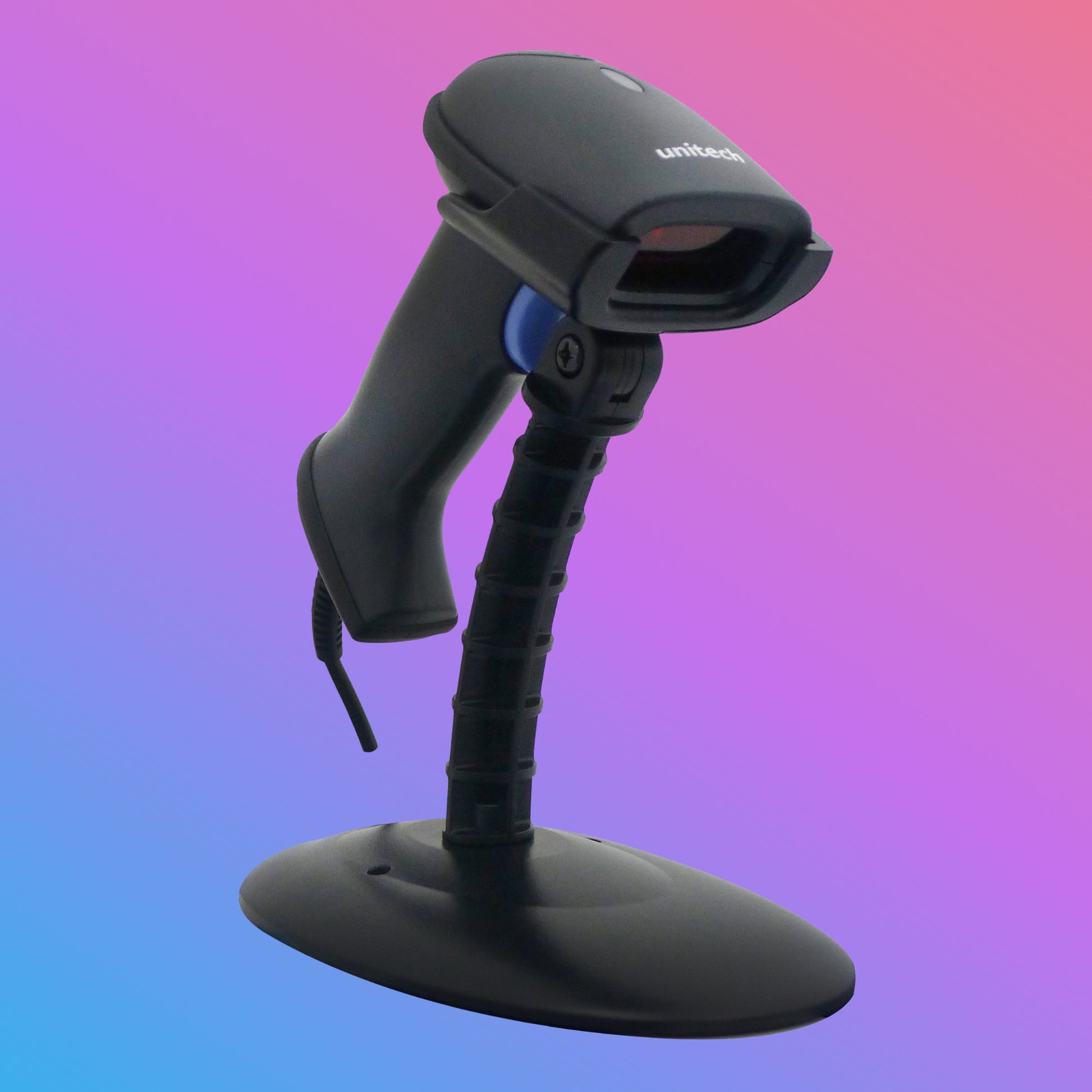

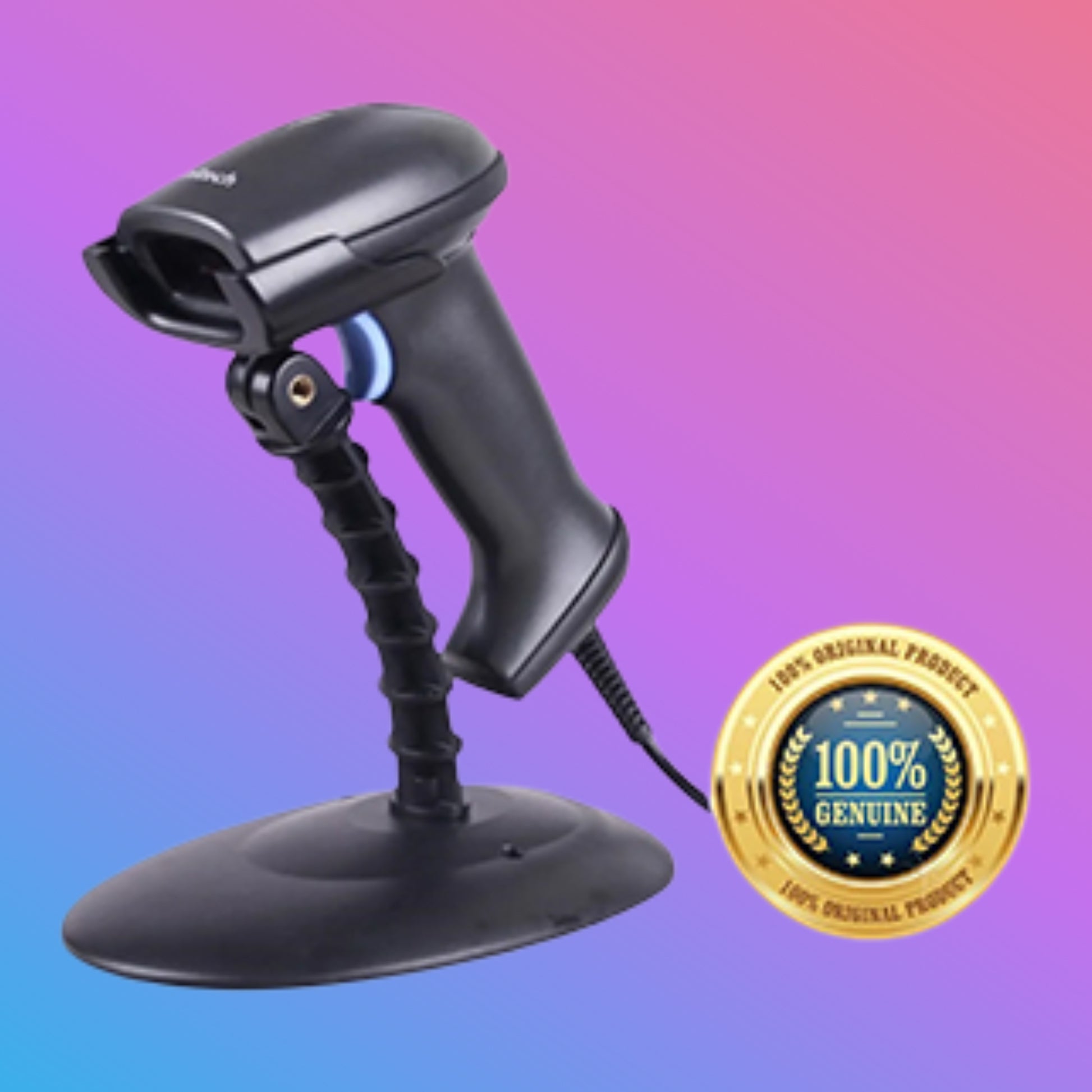

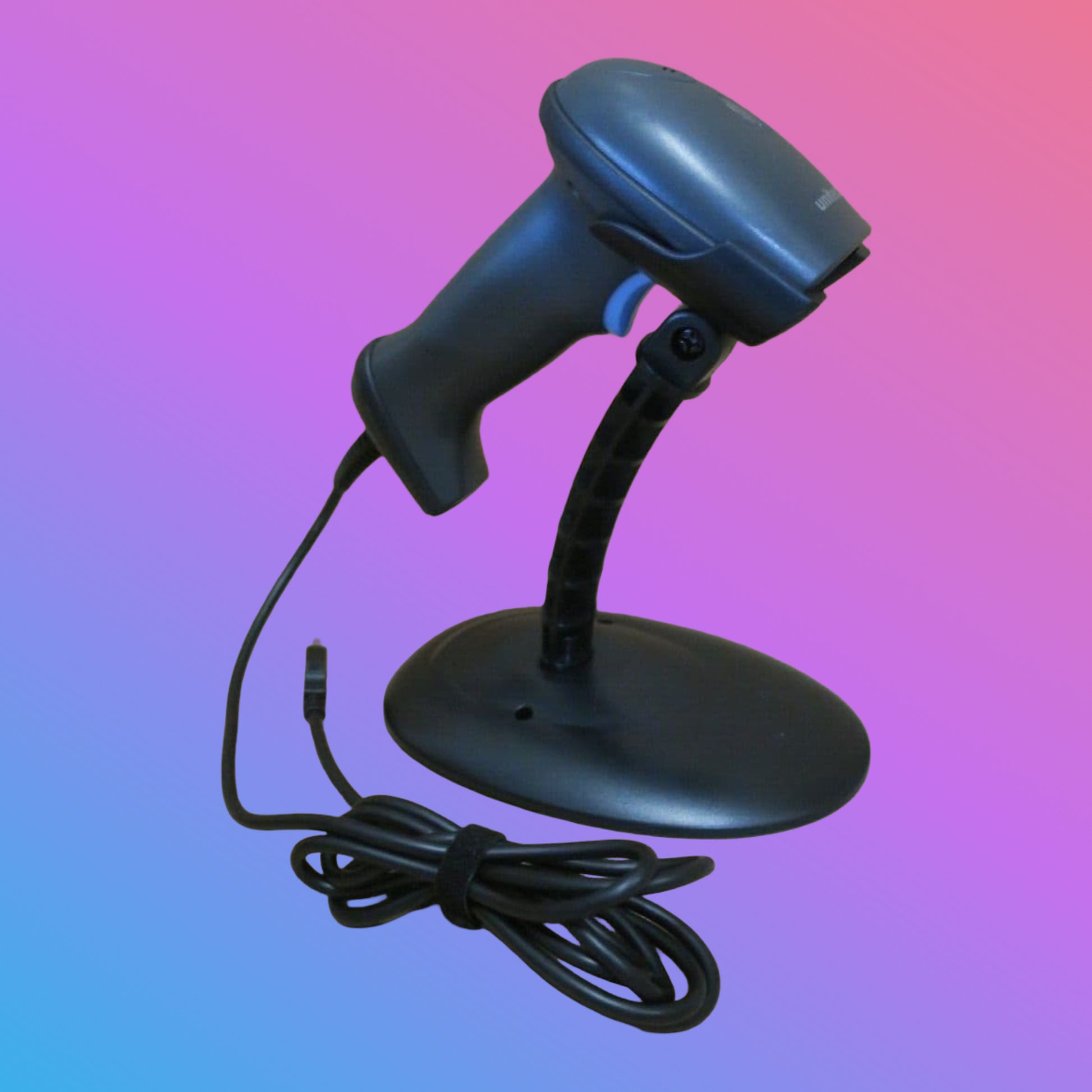

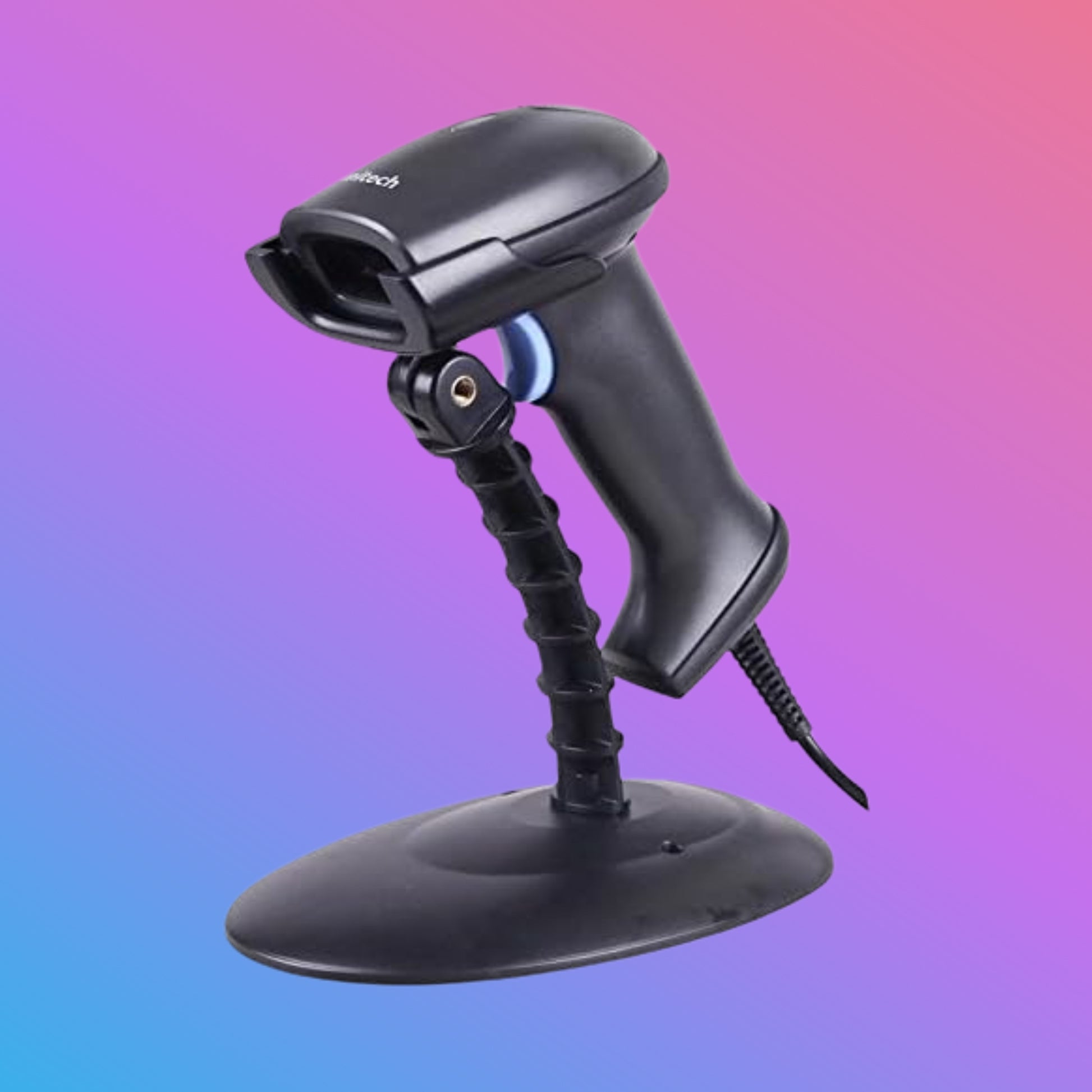

The Unitech MS836 is a USB 1D laser barcode scanner designed for everyday retail, hospitality, and light industrial scanning applications.

It supports trigger mode, presentation mode, and auto-sensing mode, making it suitable for both handheld and hands-free operation.

This product is supplied within the UAE.

Product Overview

The MS836 is engineered for consistent 1D barcode reading with a scan rate of 100 scans per second.

It supports optical resolution of 4 mil (Code 39) and operates effectively in environments with ambient light up to 100,000 lux.

With an IP52 rating and 1.5-meter drop resistance, it is built for regular operational use in checkout counters, service desks, and back-office inventory tasks.

The scanner includes a hands-free stand and USB cable for direct connection to POS systems or computers.

Key Features

• 1D laser barcode scanning
• USB interface (1.9m straight cable included)
• Scan rate: 100 scans/second
• Optical resolution: ≥4 mil (Code 39)
• Supports low print contrast reading
• IP52 protection rating
• 1.5m drop resistance
• Trigger mode
• Presentation mode
• Auto-sensing mode
• Includes hands-free stand

Technical Specifications

Optical & Performance

• Sensor: Laser engine
• Scan Rate: 100 scans/sec
• Ambient Light: 0–100,000 lux
• Skew Angle: ±60°
• Pitch Angle: ±60°
• Optical Resolution: ≥4 mil (Code 39)
• Printing Contrast Scale: 30%
• Depth of Field: 10mm–265mm (13 mil EAN13, PCS=90%)

Communication

• Host Interface: USB
• Cable Length: 1.9m straight USB cable

Mechanical

• Dimensions: 174mm × 72mm × 96mm
• Weight: 245g

Electrical

• Operating Voltage: DC 3V–5V
• Operating Current: <85mA
• Standby Current: <36mA

Environmental

• Drop Resistance: 1.5 meters
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -20°C to 60°C
• Humidity: 5% to 95% non-condensing
• IP Rating: IP52

Supported 1D Barcode Symbologies

EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 128, EAN128, Codabar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1, and other standard 1D formats.

What Comes in the Box

• MS836 Scanner
• Hands-free Stand
• USB Cable

Business Applications

• Retail checkout counters
• Hospitality POS systems
• Inventory tracking
• Service counters
• Back-office barcode processing

If you require a wireless scanner, please see our barcode scanner collection.

UAE Supply & VAT

• Supplied within UAE
• VAT applicable as per UAE regulations
• Delivery timelines follow our Shipping Policy
• Returns handled under our Return & Refund Policy
• Warranty coverage detailed in our Warranty Policy

Why Buy from REPRONIX®

• UAE-based supply
• Genuine hardware sourced from authorized distribution channels
• Clear VAT invoicing
• Local business support
• Transparent warranty terms
• No misleading claims or inflated specifications
• Pre-sale compatibility guidance available

We focus on practical, business-ready solutions for retail, hospitality, warehouse, and service industries across the UAE.

FAQ - Unitech MS836

Q: Does the MS836 support 2D barcodes?
A: No. The MS836 supports 1D laser barcode scanning only.

Q: Can it be used hands-free?
A: Yes. The included stand allows presentation mode or auto-sensing mode for hands-free operation.

Q: Is it suitable for heavy industrial environments?
A: It is designed for retail, hospitality, and light industrial use. For harsh industrial environments, a rugged industrial-grade scanner may be more suitable.

Warranty

15-month hardware warranty covering manufacturing defects under normal usage.

Accessories carry warranty coverage as per manufacturer terms.

Physical damage caused by misuse or impact beyond specified limits is not covered.

Disclaimer

Specifications are based on manufacturer documentation. Actual performance may vary depending on barcode quality, environmental conditions, and configuration.

Please confirm compatibility with your POS or software system before purchase.

Contact REPRONIX®

For availability confirmation, pricing, or technical clarification:

Email: info@repronix.com
WhatsApp: +971 50 739 1234

Last Updated: 16 February 2026
