Compact Industrial Performance with Future-Ready Architecture

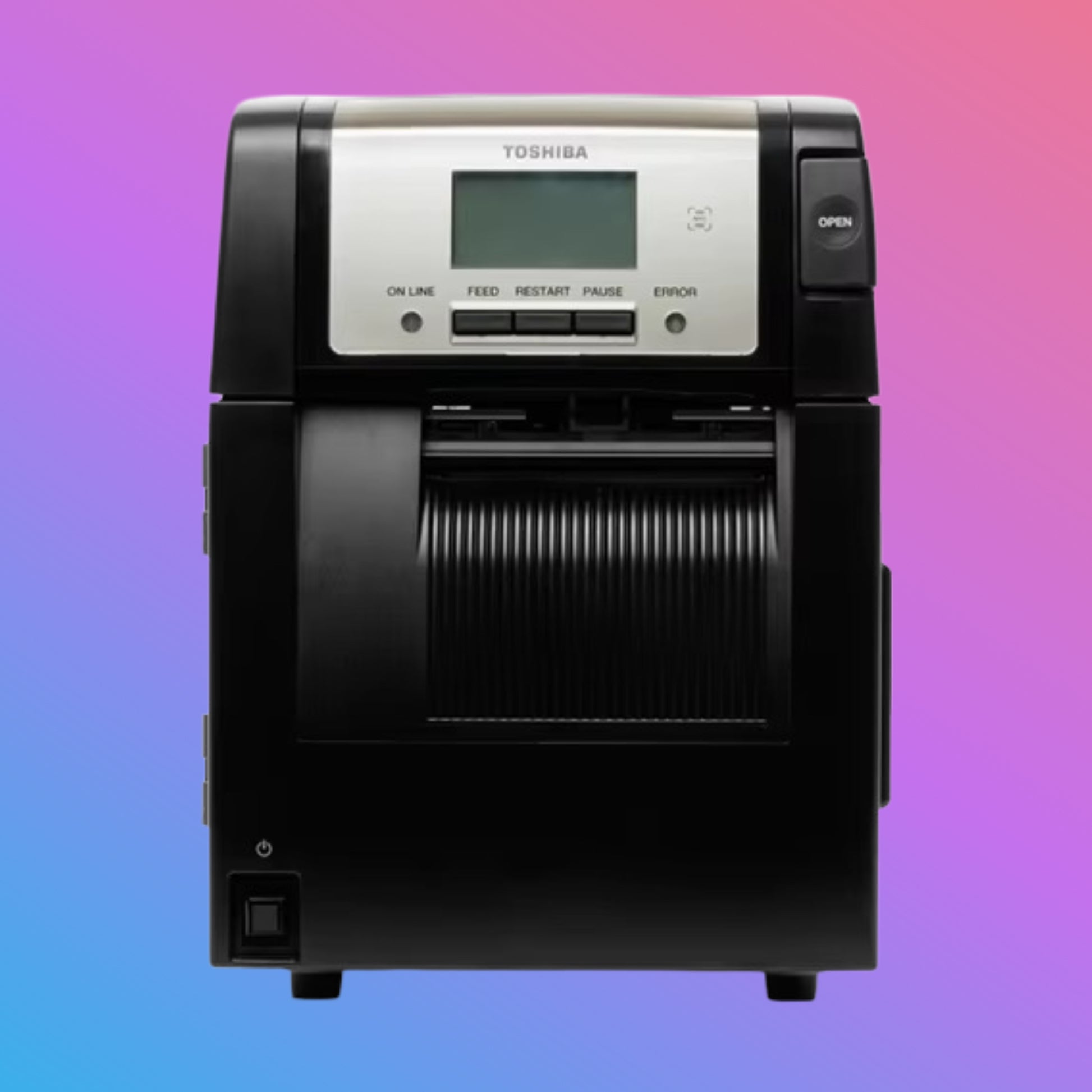

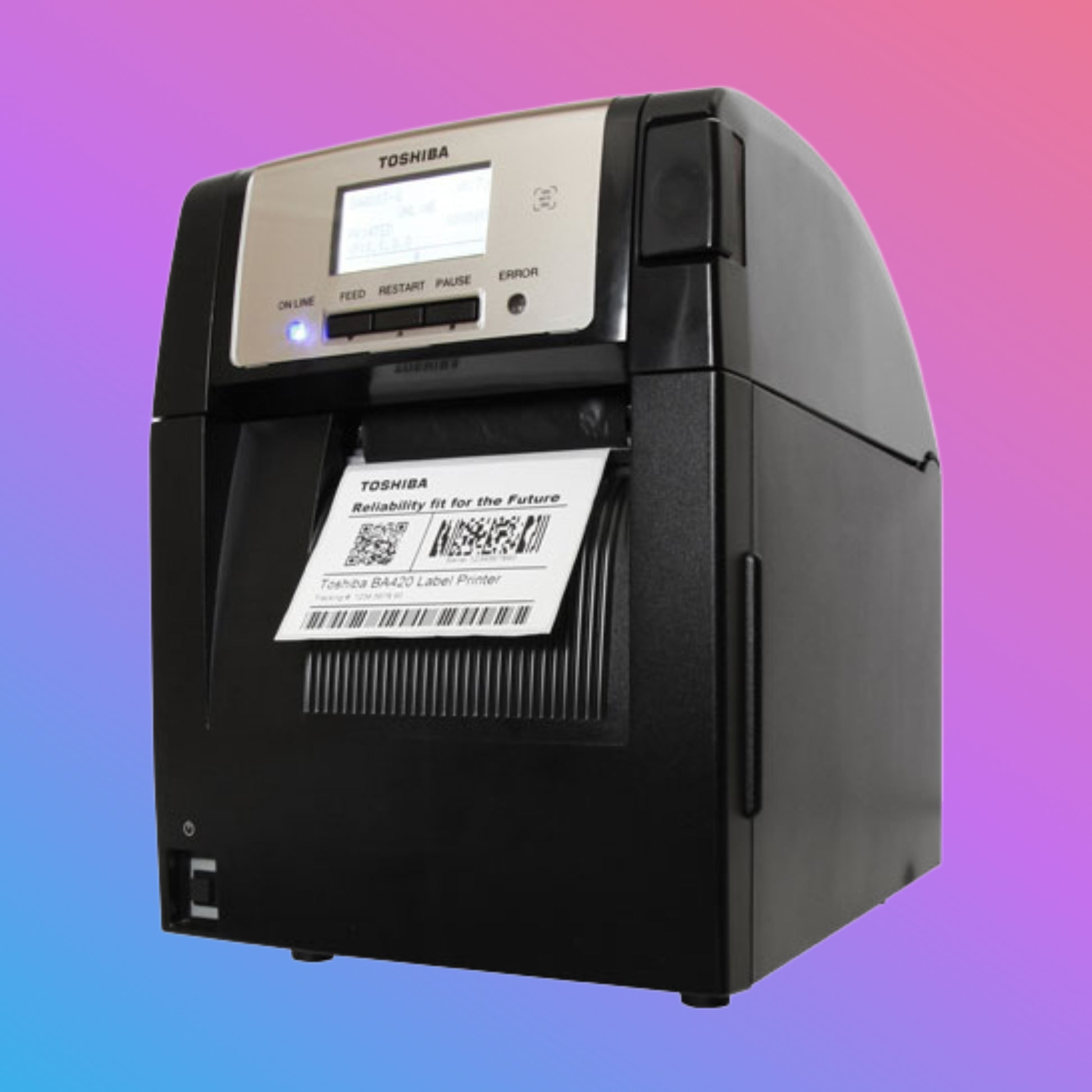

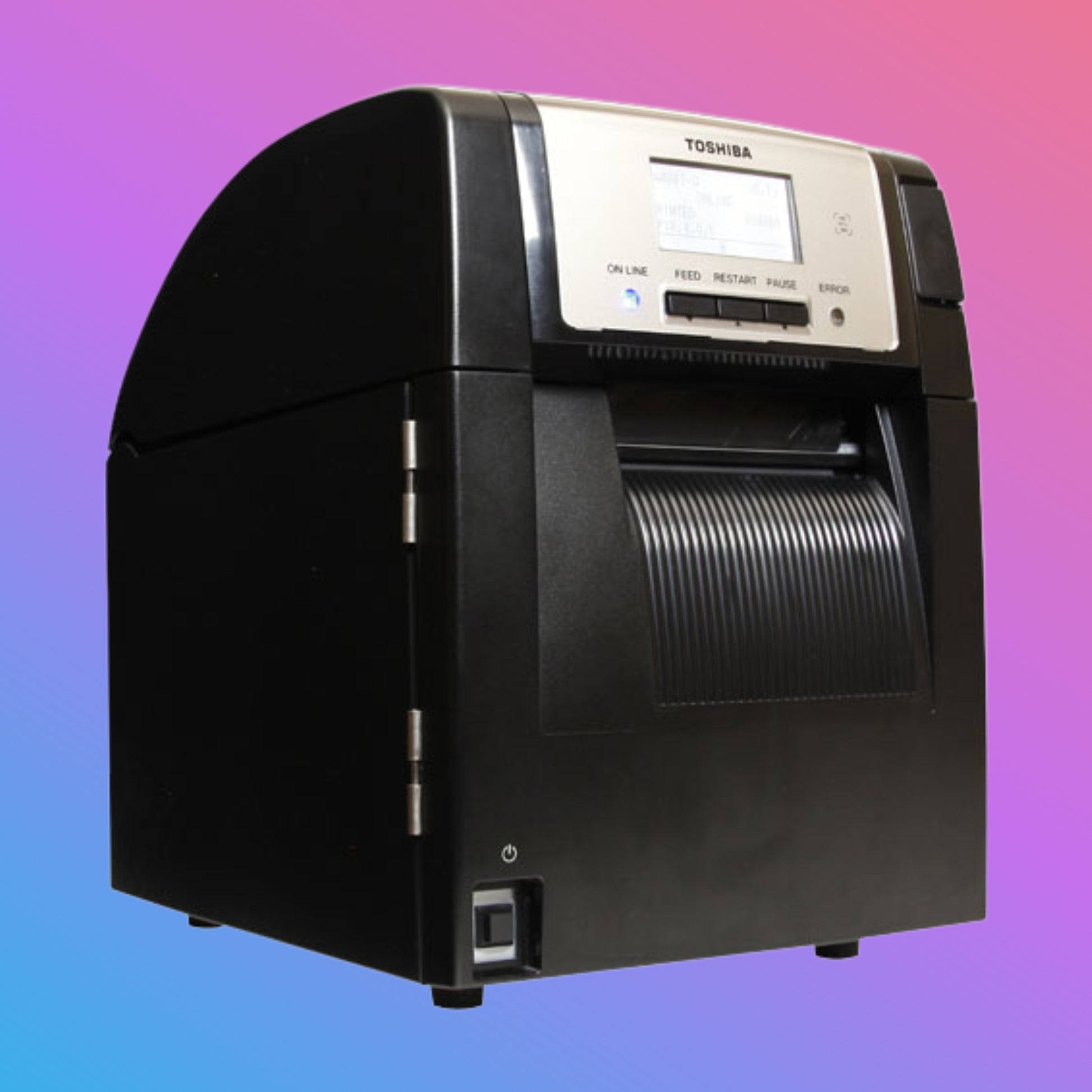

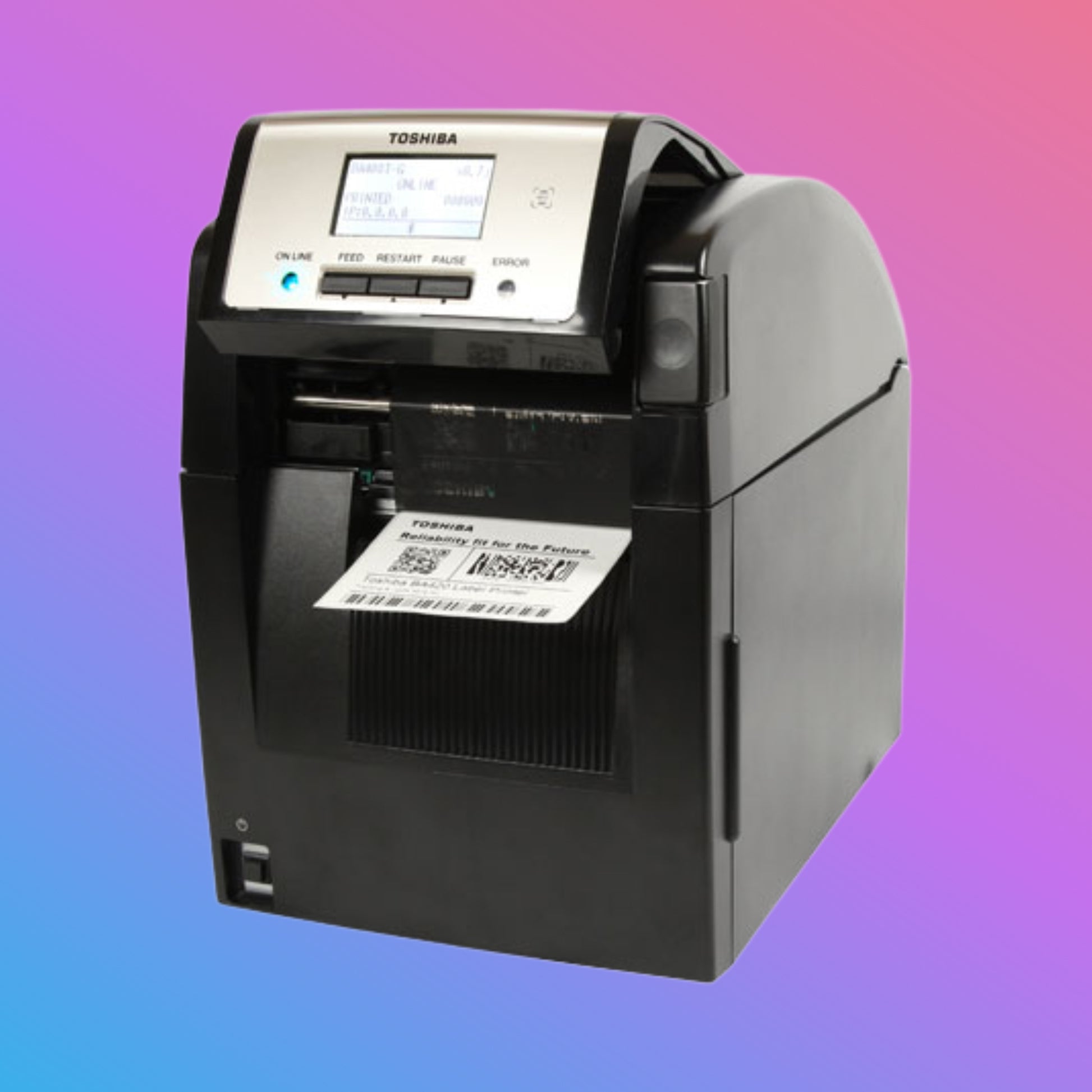

The Toshiba BA420T is a compact yet powerful industrial barcode label printer built on Toshiba’s next-generation software platform. Designed for environments where space is limited but performance cannot be compromised, the BA420T delivers industrial-grade reliability for offices, retail, logistics, manufacturing, and warehouse operations.

With thermal transfer and direct thermal printing, advanced connectivity, and IoT device management support, the BA420T is engineered for long-term operational stability.

Overview

The BA420T combines:

• Industrial-level performance
• Compact clamshell design

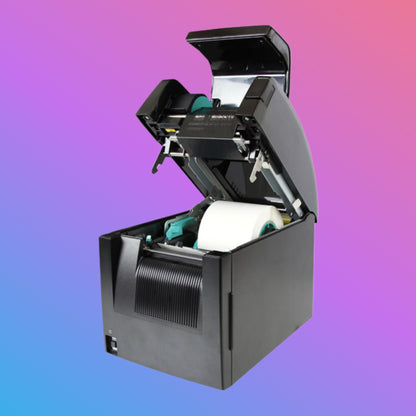

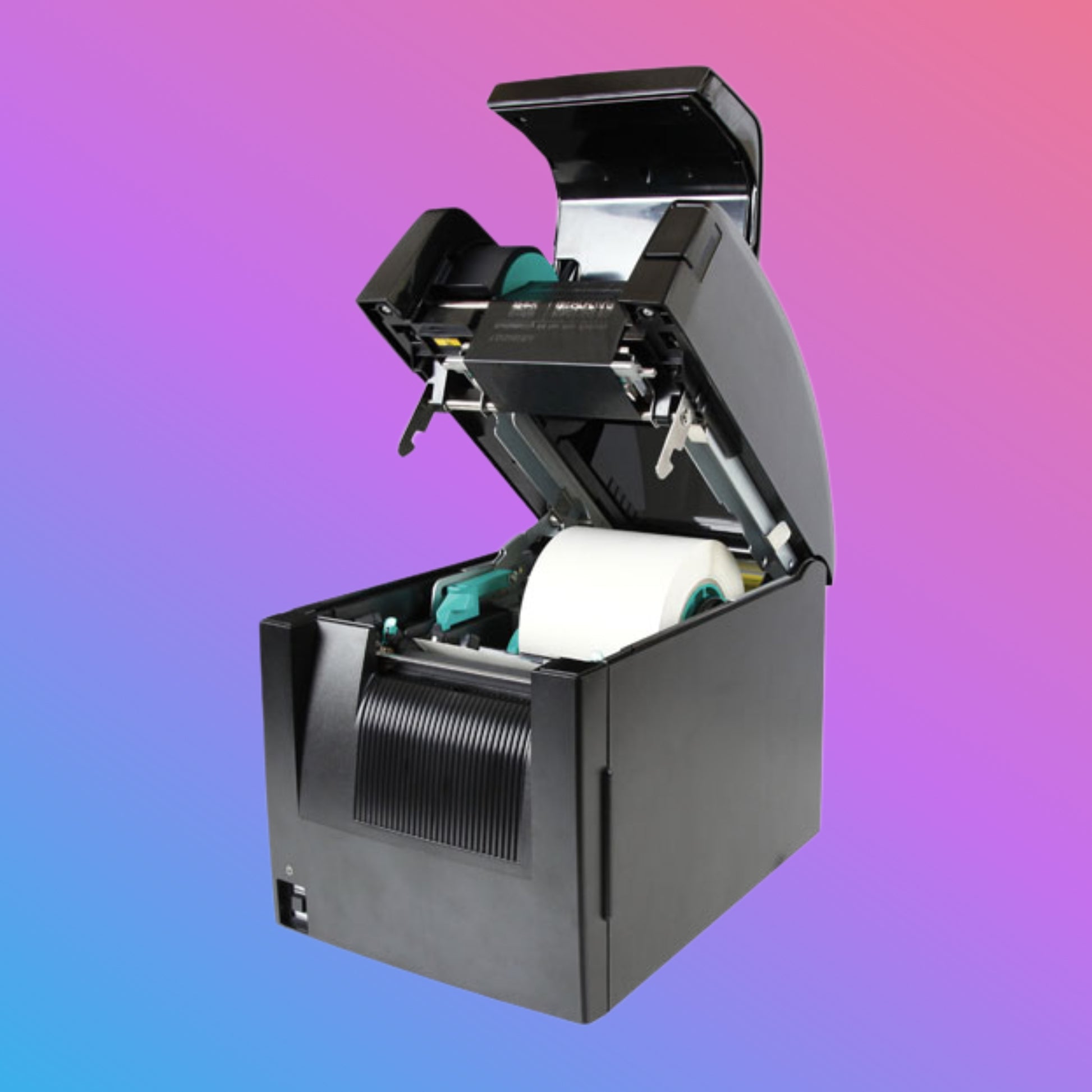

• Drop-in media loading
• Future-proof OS architecture
• High-speed data processing
• SOTI Connect IoT device management

It is ideal for businesses requiring dependable 4-inch label printing with advanced system integration capabilities.

Key Features

• Compact clamshell design with easy drop-in media loading
• Extensible OS architecture for future software updates
• Up to 8 ips print speed
• 203 dpi or 300 dpi resolution options
• 450 m ribbon capacity
• Double Engine Ribbon Tension Control
• Snap-in print head for easy maintenance
• SOTI Connect certified
• NFC for Bluetooth pairing
• Industrial-grade reliability

Print Specifications

• Print Method: Thermal Transfer / Direct Thermal
• Print Head: Flat head
• Resolution: 203 dpi / 300 dpi
• Maximum Print Speed: 8 ips (203.2 mm/sec)
• Maximum Print Width:
• GS12: 104 mm
• TS12: 105.7 mm
• Maximum Print Length: 1,498 mm

Media & Ribbon Specifications

Media

• Media Width:
• Direct Thermal: 22 – 118 mm
• Thermal Transfer: 22 – 114 mm
• Media Thickness:
• Direct Thermal: 0.08 – 0.17 mm
• Thermal Transfer: 0.1 – 0.17 mm
• Core Diameter: 38 mm, 40 mm, 42 mm, 76.2 mm
• Maximum Outer Roll Diameter: 152.4 mm
• Media Types: Vellum, matt coated, glossy coated, synthetic film, PET, polyimide
• Format: Roll, fanfold

Ribbon

• Ribbon Width: 60 – 110 mm
• Ribbon Core: 25.4 mm (1 inch)
• Maximum Ribbon Length: 450 m
• Maximum Ribbon Roll Diameter: 75 mm

Connectivity & Integration

• USB 2.0 HS
• Ethernet 10/100 Base T (IPv4 & IPv6)
• Bluetooth V2.1 EDR (MFi certified)
• NFC (Bluetooth pairing)
• Optional serial, parallel, and expansion I/O

Emulation Support

• ZPL II
• SBPL
• DPL
• EPL
• IPL

Drivers & SDK

• Windows, Windows Server, Linux, SAP
• SDK: iOS, Android, Windows, Java
• Label Software: BarTender UltraLite (co-packed)

Industrial & IoT Capability

• SOTI Connect certified
• SNMP network management tool
• Double Engine Ribbon Tension Control
• Cover damper
• Batch / Auto cut* / Peel-off* modes

(*Optional modules required)

General Specifications

• Dimensions: 245 × 350 × 332 mm
• Weight: 12 kg
• Memory: 128 MB (FROM), 128 MB (SRAM)
• Duty Cycle Guide: Up to 5,000 labels per day
• Operating Temperature: 5°C to 40°C
• Power Supply: AC 100–240 V

Optional Accessories

• BA204P-QM-S – Cutter Module
• BA904P-H-QM-S – Peel-Off Module
• BA700-RTC-QM-S – Real-Time Clock
• BA700-RS-QM-S – Serial Interface
• BA700-CEN-QM-S – Centronics / Parallel Interface
• BA700-IO-QM-S – Expansion I/O Board
• BA704-RFID-U4-EU-S – UHF RFID Module Kit

Availability of modules should be confirmed before order.

Applications

• Warehouse labeling
• Retail barcode printing
• Manufacturing identification labels
• Shipping and logistics
• Asset management
• Inventory control

FAQ - Toshiba BA420T

Q: Is BA420T suitable for industrial use?
A: Yes. Although compact, it offers industrial-level durability and ribbon capacity.

Q: Does it support ZPL?
A: Yes, it supports ZPL II and multiple printer emulations for easy integration.

Q: Can it be upgraded with cutter or peel-off?
A: Yes, optional cutter and peel-off modules are available.
