Reliable Industrial Performance with Modern Connectivity

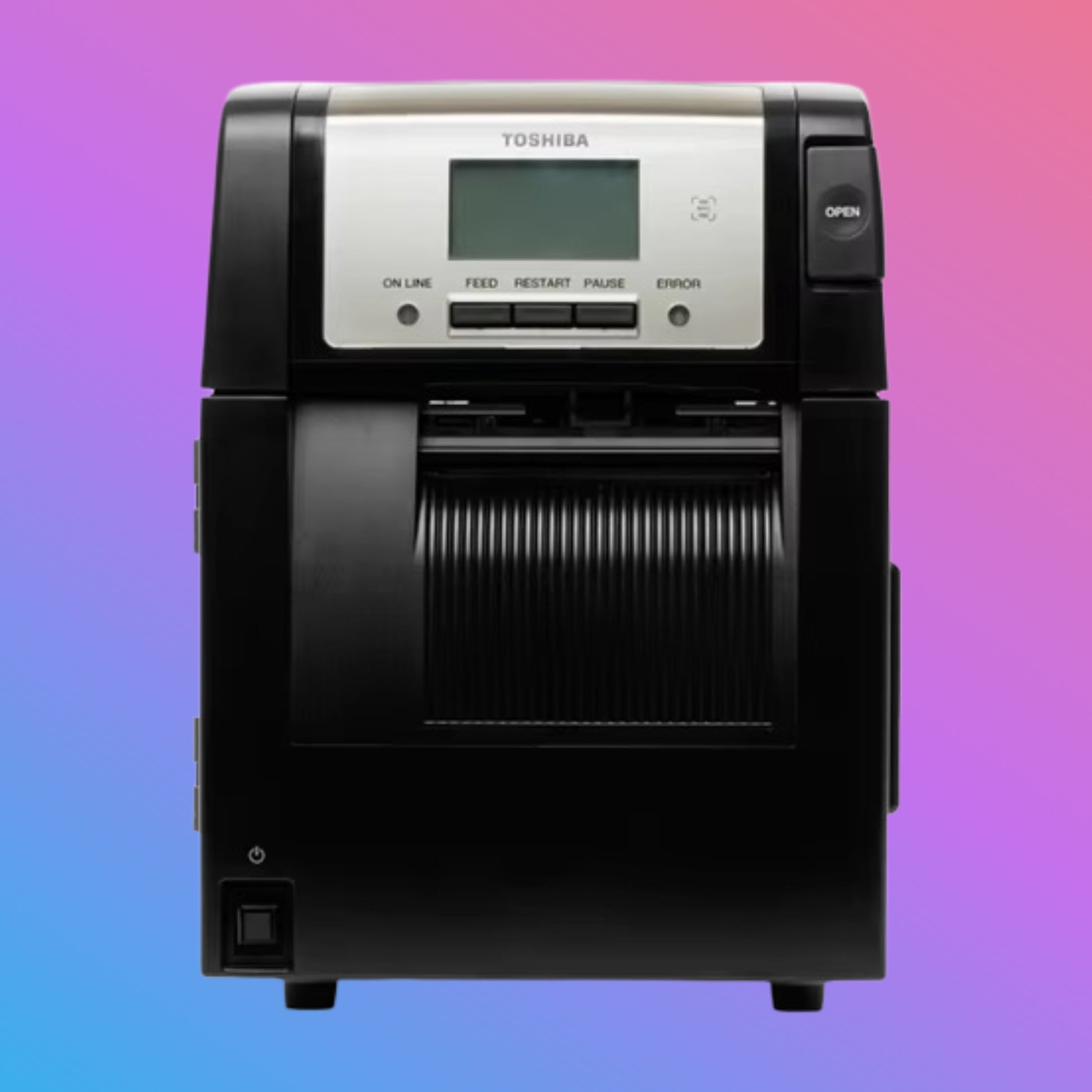

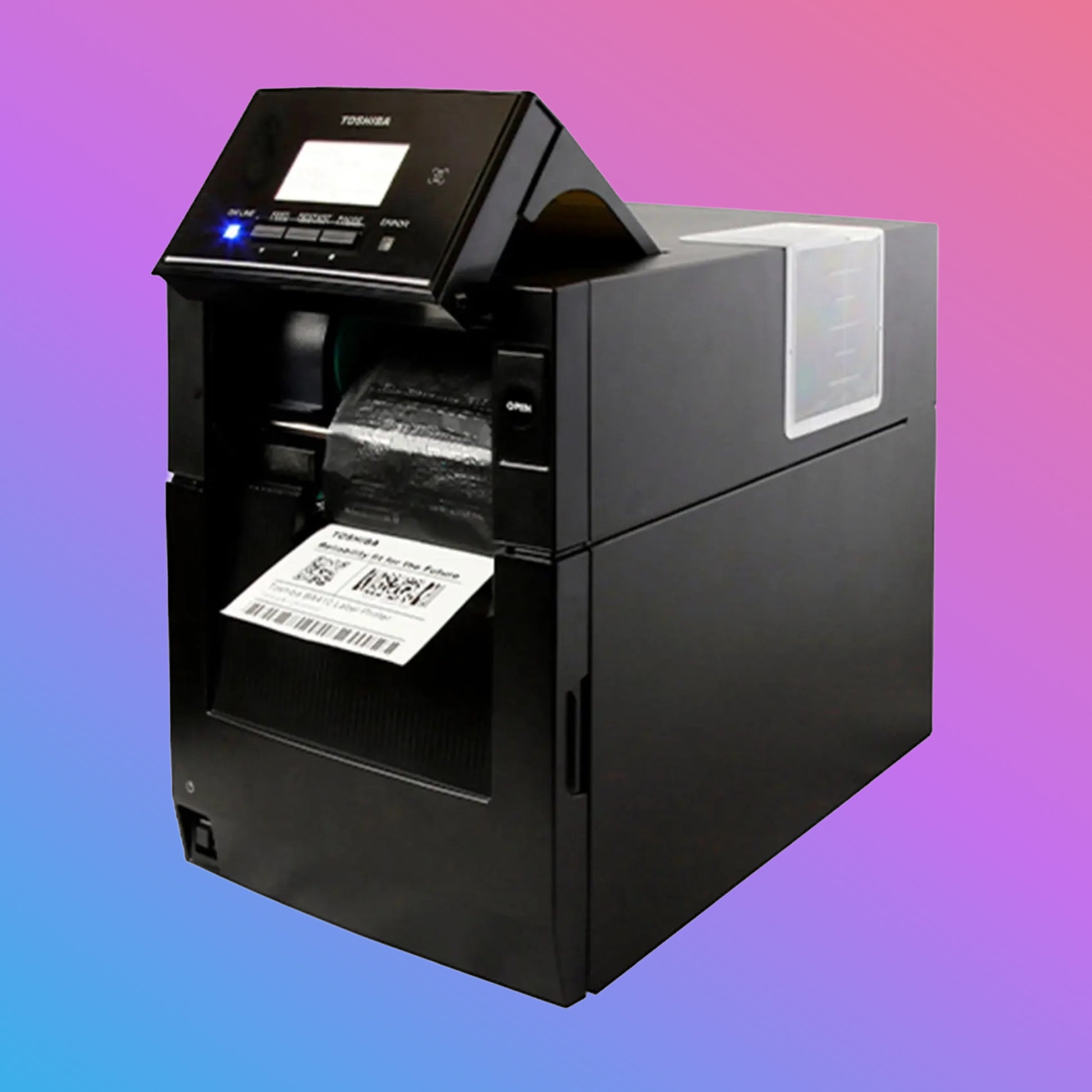

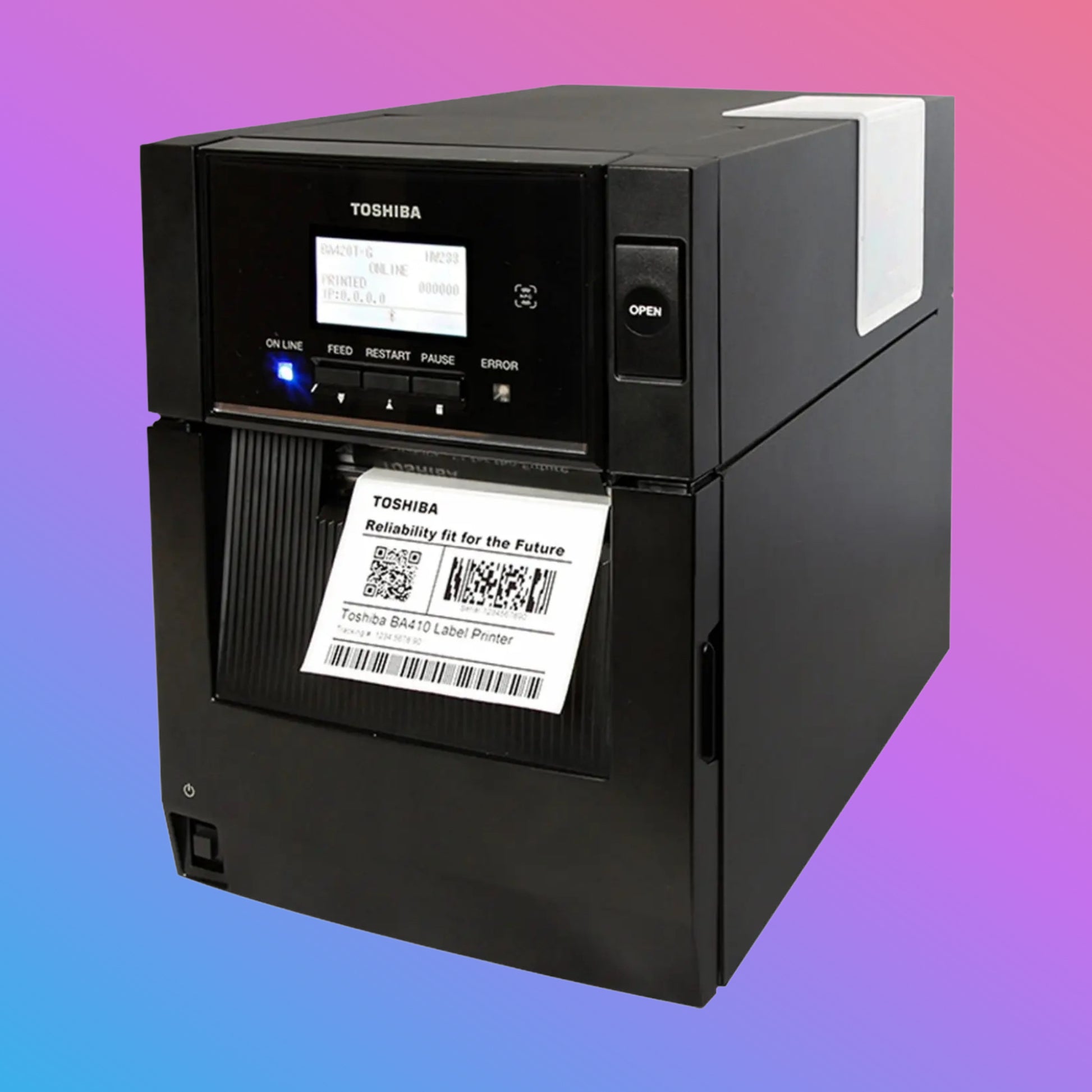

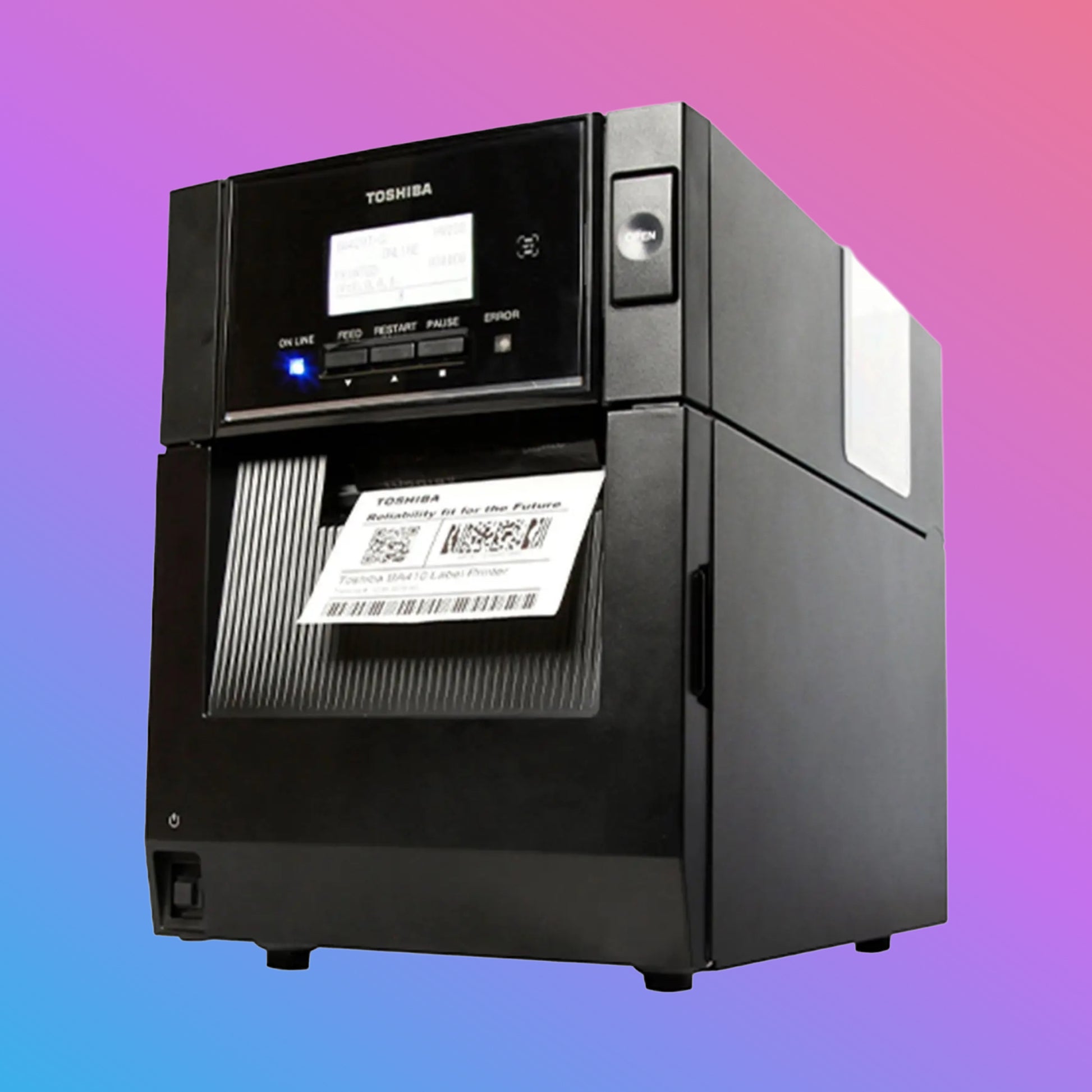

The Toshiba BA410T is a compact industrial thermal transfer barcode printer designed for demanding business environments. Built on Toshiba’s proven mechanical platform and enhanced with a modern software architecture, it delivers consistent performance, strong durability, and flexible integration options.

Suitable for manufacturing, logistics, warehousing, retail, and healthcare applications, the BA410T offers industrial-level functionality in a compact footprint.

Overview

The Toshiba BA410T supports both thermal transfer and direct thermal printing. With high ribbon capacity, multiple emulations (ZPL II, SBPL, DPL, EPL, IPL), and IoT device management compatibility, it integrates easily into existing infrastructure.

Its robust construction minimizes downtime, while improved processing power enhances productivity in high-demand environments.

Key Features

• Thermal Transfer & Direct Thermal printing
• 203 dpi or 300 dpi resolution options
• Print speed up to 8 ips (203.2 mm/sec)
• Maximum print width up to 105.7 mm
• Supports 450 m ribbon capacity
• Large 128 MB Flash / 128 MB SRAM memory
• LCD display (128 x 64 graphic)
• ZPL II, SBPL, DPL, EPL, IPL emulation support
• SOTI Connect certified (IoT device management)
• NFC pairing for Bluetooth setup
• SNMP network management support

Technical Specifications

General

• Printing Technology: Thermal transfer / Direct thermal
• Print Head Type: Flat head
• Memory: 128 MB Flash (FROM), 128 MB SRAM
• User Interface: Graphic LCD (128 x 64 dots), 2 LEDs, 3 keys
• Dimensions: 245 × 414 × 333 mm
• Weight: 15 kg
• Power Supply: AC 100–240 V, 50/60 Hz
• Operating Temperature: 5°C to 40°C
• Duty Cycle Guide: Approx. 5,000 labels/day*

Print Performance

• Resolution: 203 dpi or 300 dpi
• Max Print Speed: Up to 8 ips
• Max Print Width:
• 104 mm (GS12)
• 105.7 mm (TS12)
• Max Print Length: 1,498 mm
• Sensors: Reflective & Transmissive

Media & Ribbon

• Ribbon Width: 60 – 110 mm
• Ribbon Core: 25.4 mm (1 inch)
• Max Ribbon Length: 450 m
• Max Ribbon Roll Diameter: 75 mm
• Media Width:
• Direct thermal: 22 – 118 mm
• Thermal transfer: 22 – 114 mm
• Media Thickness:
• Direct thermal: 0.08 – 0.17 mm
• Thermal transfer: 0.1 – 0.17 mm
• Max Outer Media Roll Diameter: 200 mm
• Media Types:
• Vellum labels
• Coated paper (matte/gloss)
• Synthetic film
• PET film
• Polyimide

Barcode & 2D Support

1D Barcodes:
UPC/EAN, Code 39, Code 128, Code 93, MSI, Interleaved 2 of 5, POSTNET, GS1 DataBar and more.

2D Codes:
QR Code, Data Matrix, PDF417, MaxiCode, Aztec, GS1 Data Matrix, Micro QR.

Connectivity & Integration

• USB 2.0 High Speed
• Ethernet 10/100 Base-T (IPv4 & IPv6)
• Bluetooth V2.1 EDR (MFi Certified)
• NFC for Bluetooth pairing
• Optional: Serial, Parallel, Expansion I/O
• SDK: iOS, Android, Windows, Java
• Drivers: Windows, Linux, SAP compatible

Applications

The Toshiba BA410T is suitable for:

• Manufacturing product labeling
• Warehouse & logistics tracking
• Asset labeling
• Retail shelf labeling
• Healthcare identification
• Shipping & compliance labeling

Why Choose REPRONIX®

REPRONIX® supplies genuine industrial barcode printers within the UAE with clear policies and structured after-sales support.

• UAE-based business operation
• Brand-new equipment only
• Clear documentation and invoicing
• Professional support handling
• Transparent delivery and return policies

FAQ - Toshiba BA410T

Q: Does the BA410T support ZPL?

A: Yes. The BA410T supports ZPL II emulation along with SBPL, DPL, EPL, and IPL.

Q: What ribbon size does it use?

A: It supports ribbons up to 450 meters with 1-inch core size.

Q: Is it suitable for industrial environments?

A: Yes. The BA410T is designed for industrial use with strong mechanical reliability and high-duty operation.

Optional Accessories & Expansion Modules

The Toshiba BA410T supports modular upgrades to adapt to specific operational requirements.

Available accessories include:

• BA904-H-QM-S – Peel-Off Module (Label Present Mode)
• BA204-QM-S – Cutter Module for BA410
• BA700-RTC-QM-S – Real-Time Clock Module
• BA700-RS-QM-S – Serial Interface Module
• BA700-CEN-QM-S – Centronics / Parallel Interface Module
• BA700-IO-QM-S – Expansion I/O Board
• BA704-RFID-U4-EU-S – UHF RFID Module Kit (EU version)

These modules may be installed depending on configuration requirements. Availability should be confirmed prior to order.

UAE Delivery Information

Delivery available within the United Arab Emirates.
Overseas customers may arrange their own UAE-based forwarder or collection.

Disclaimer

Specifications are provided for reference based on manufacturer documentation. Features, compatibility, and availability may change without notice. Please confirm configuration requirements before ordering.

Last updated: 15 February 2026
