Professional Handheld Scanner for Retail, Warehouse & POS

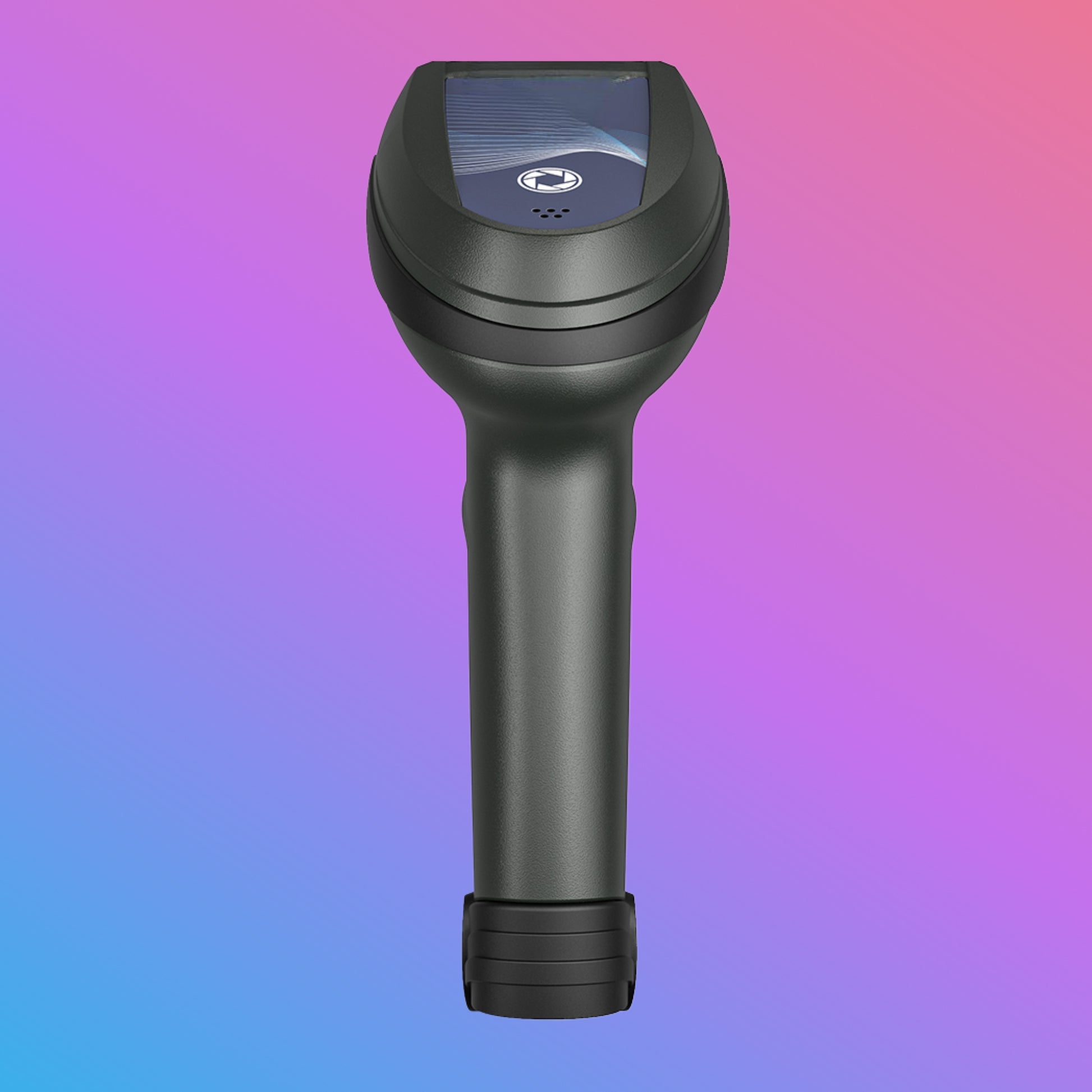

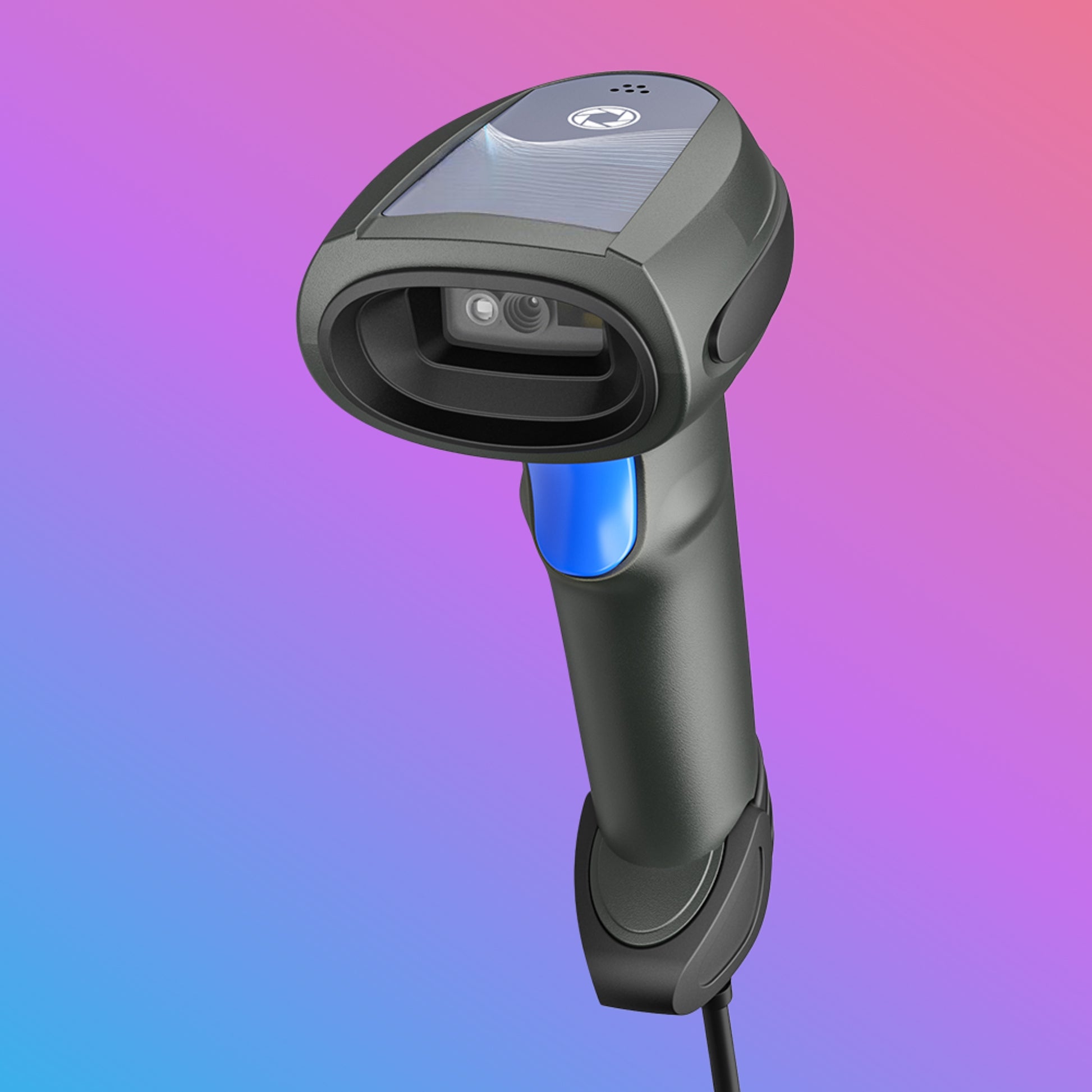

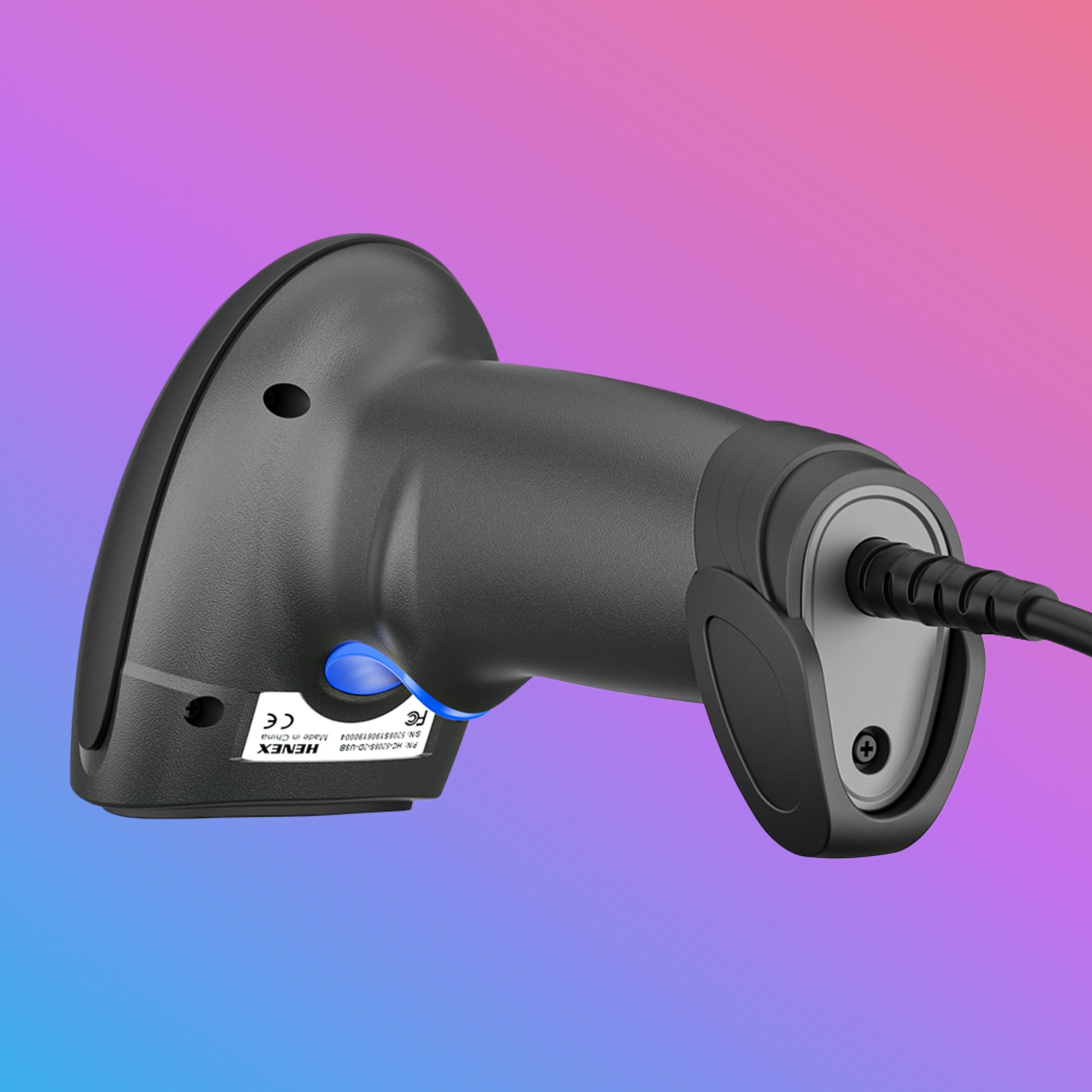

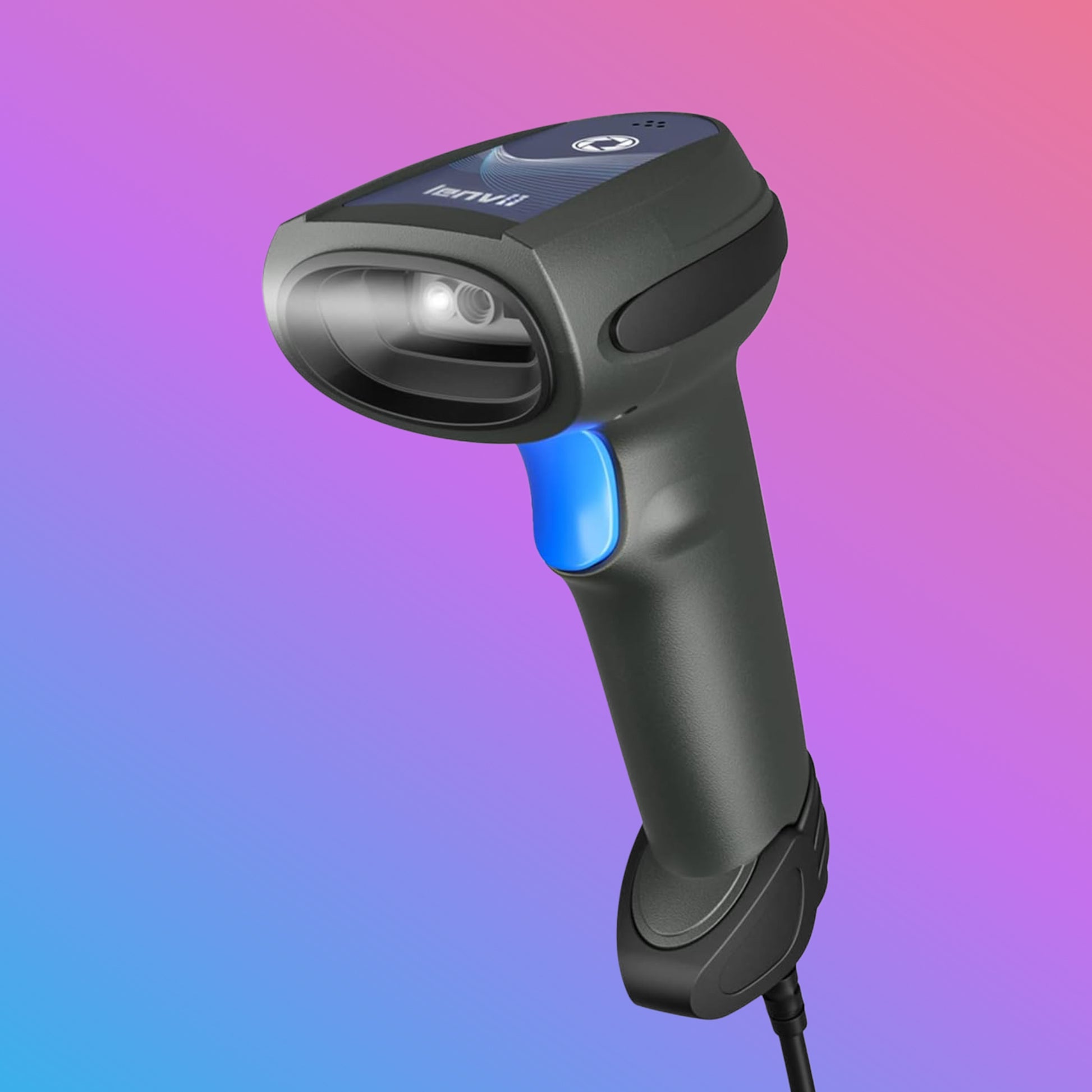

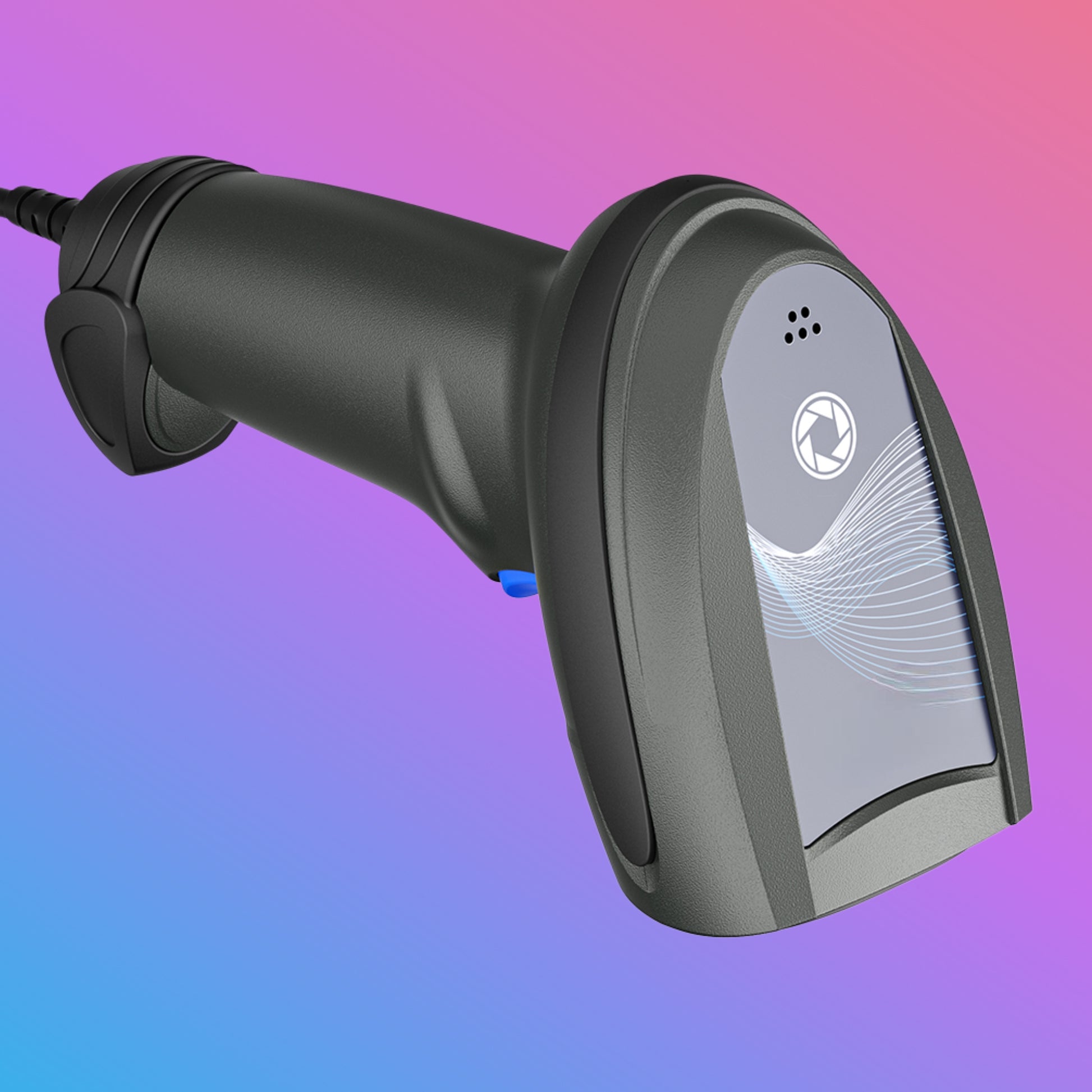

The REPRONIX® RX-5208S is a high-performance 1D/2D barcode scanner designed for retail, warehouse, healthcare, and supermarket environments. Built on a 1MP CMOS imaging engine, this wired handheld scanner supports barcode decoding from both paper and digital screens, including QR codes, PDF417, Data Matrix, and OCR reading.

Engineered for durability and daily commercial use, the RX-5208S offers stable performance, fast scanning speed, and wide compatibility with Windows and Android systems.

Overview

• 1MP CMOS image sensor (1280 × 800 pixels)
• Reads 1D, 2D, QR Code, PDF417, Data Matrix, Aztec, Dotcode
• Supports OCR (Passport, ID card, Driving License, Visa)
• USB plug & play operation
• RS-232 & virtual COM port supported
• Reads barcodes from paper and mobile screens
• Drop resistance up to 2 meters
• IP54 rated housing

Designed for consistent performance in demanding commercial environments.

Key Features

• 1MP high-resolution image sensor
• Up to 90 fps frame rate
• Strong decoding for damaged, blurred, or low-contrast barcodes
• Supports screen scanning (mobile phones & tablets)
• Plug & play USB connectivity
• OCR capability for selected document types
• 1.8 meter USB cable included
• Online firmware decoding update support

Scanning Performance

• Image Sensor: CMOS
• Resolution: 1280 (H) × 800 (V)
• Frame Rate: Up to 90 fps
• Minimum Resolution: ≥ 3 mil (Code 39)
• Print Contrast: ≥ 20%
• Field of View:
• 34° horizontal
• 28° vertical
• Scan Angle:
• Elevation 65°
• Tilt 30°
• Declination 55°

Depth of Field (Typical)

• 4 mil Code39: 30–120 mm
• 13 mil EAN-13: 25–300 mm
• 10 mil PDF417: 5–280 mm
• 10 mil QR: 15–180 mm

Decoding Capability

1D Codes

UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, Codabar, ITF, MSI, China Postal Code, GS1 DataBar and more.

2D Codes

QR Code, Data Matrix, PDF417, Aztec, Maxicode, Dotcode, GS1 DataBar stack.

OCR Support

• Passport
• ID Card
• Driving License
• Visa (standard OCR formats)

OCR performance depends on document condition and lighting environment.

Connectivity & Compatibility

• USB
• RS-232
• Virtual Serial Port

Supported Systems

• Windows XP / 7 / 8 / 10
• Android
• iOS (limited keyboard HID compatibility)

Plug & play via USB HID mode for most POS systems.

Physical Specifications

• Dimensions: 175 × 66 × 91.5 mm
• Weight: Approx. 210 g (with cable)
• Cable: 1.8 m straight USB
• Case Material: ABS + PC
• IP Rating: IP54
• Drop Resistance: 2 meters

Electrical Specifications

• Input Voltage: 5V DC ±5%
• Working Current: 170 mA

Environmental Conditions

• Operating Temperature: -10°C to +50°C
• Storage Temperature: -30°C to +60°C
• Operating Humidity: 5% to 95% (non-condensing)
• Ambient Light: 0 to 100,000 Lux

Certifications

CE, FCC, RoHS, LVD, EMC, BIS (as per manufacturer documentation)

Typical Applications

• Retail checkout counters
• Supermarkets
• Chain stores
• Warehouse inventory control
• Healthcare barcode identification
• Logistics & shipping
• Mobile payment scanning
• Access control & ticket validation

In the Box

• REPRONIX® RX-5208S Scanner
• 1.8m USB cable
• Quick start guide
• Standard packaging

Warranty & Support

• Warranty: 3 Years (as per manufacturer terms)
• After-Sales Support: Repair service & technical assistance
• UAE support via REPRONIX®

FAQ - REPRONIX® RX-5208S

Q: Can this scanner read QR codes from mobile screens?
A: Yes, it supports screen scanning for most 1D and 2D barcodes.

Q: Does it support OCR reading?
A: Yes, it supports OCR for selected formats such as passport and ID card MRZ.

Q: Is driver installation required?
A: For USB HID mode, no driver is required. Advanced modes may require configuration.

OEM Positioning Note

The REPRONIX® RX-5208S is manufactured under OEM configuration. Hardware specifications are based on supplier technical documentation and may vary depending on firmware version.

Last Updated: 15 February 2026
