Reliable 1D / 2D / QR Code Scanner for POS & Inventory

The REPRONIX® RX-2402 is a USB wired 2D barcode scanner designed for retail counters, warehouses, libraries, and medical environments. Equipped with a CMOS imaging engine, it supports fast and stable scanning of both printed and screen-based barcodes.

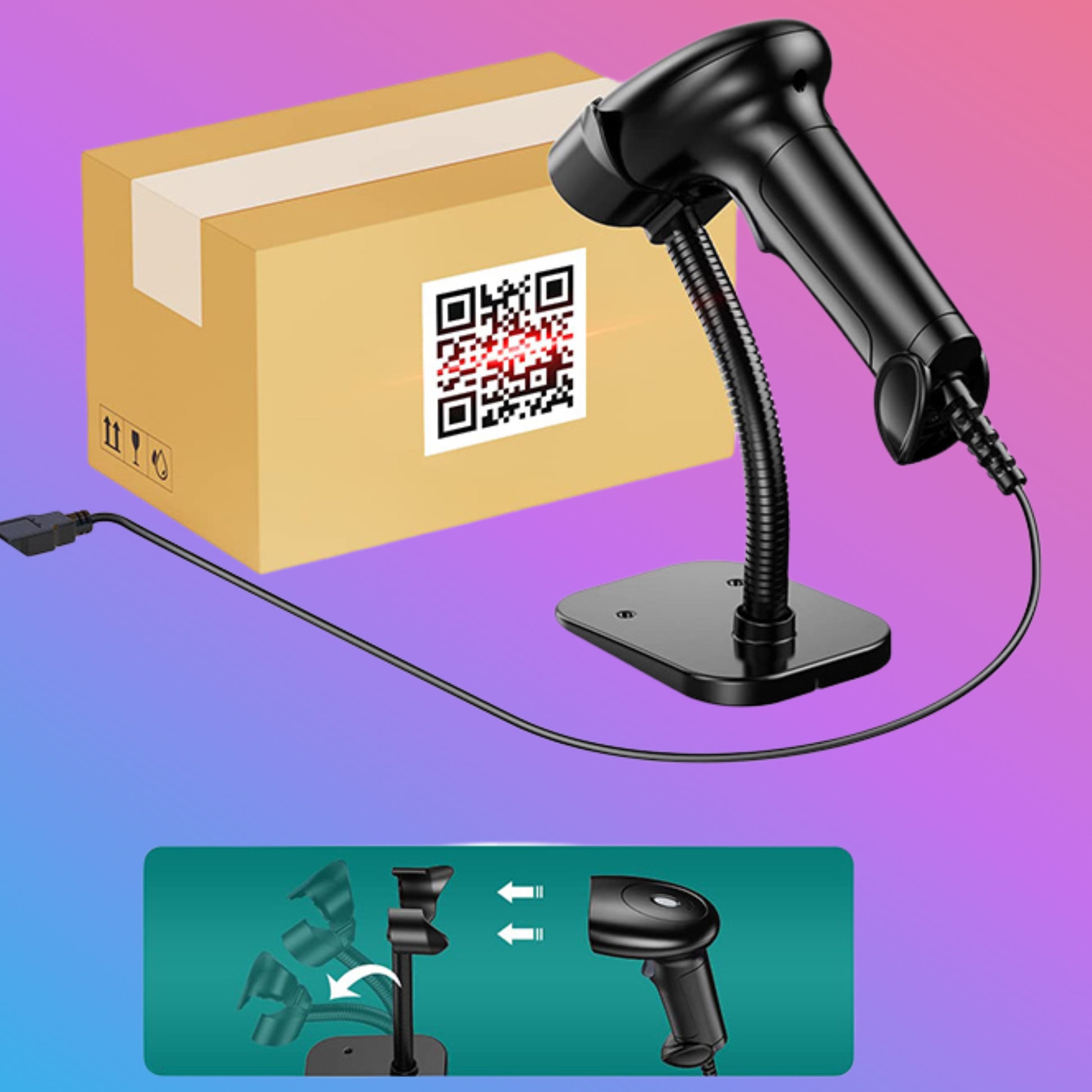

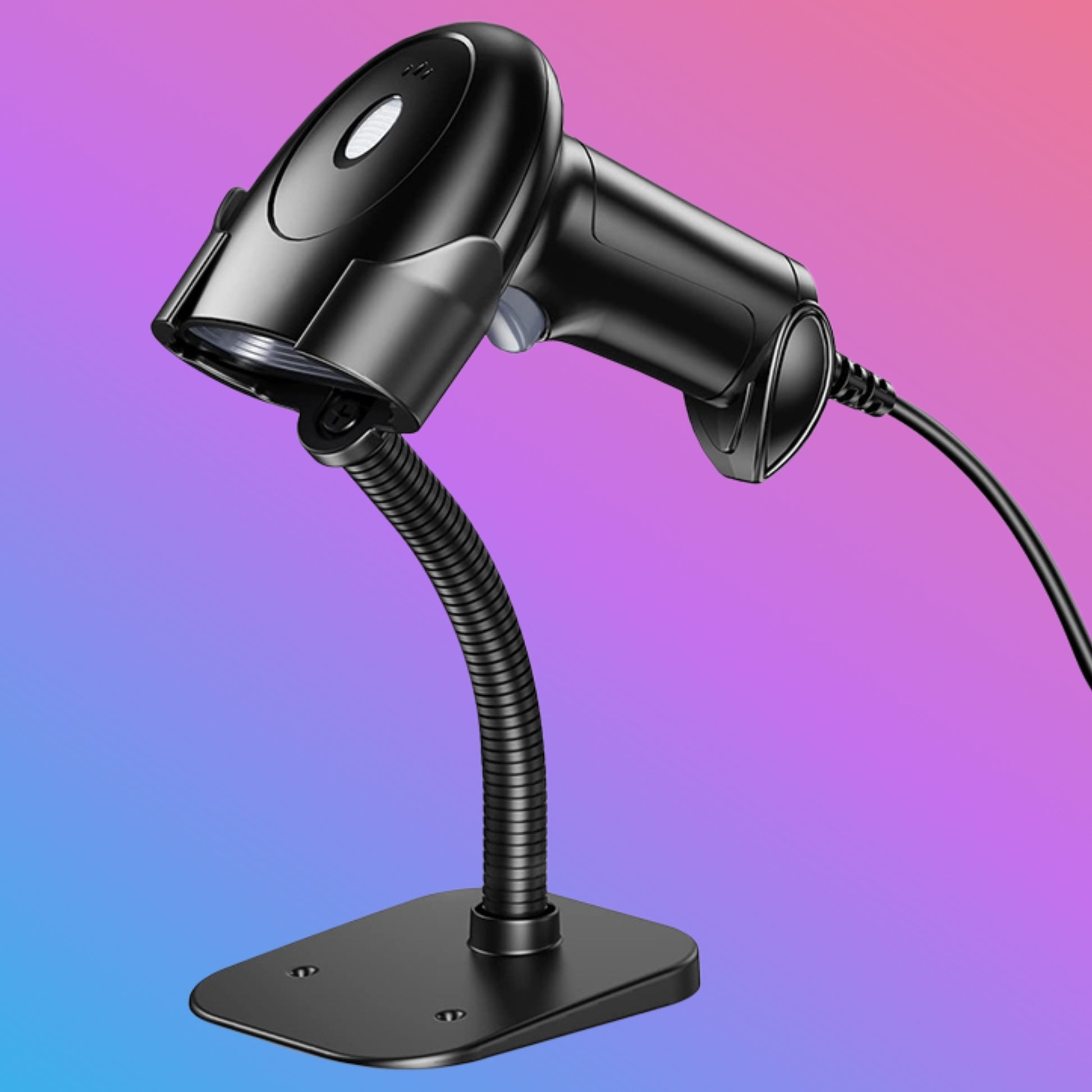

Supplied with a hands-free stand, the RX-2402 can operate in both manual trigger mode and automatic continuous scanning mode, making it suitable for POS checkout and inventory operations.

Overview

• 2D CMOS image sensor (640 × 480 resolution)
• Reads 1D, 2D, QR Code, Data Matrix
• Supports GS1 DataBar (EU medical compliance compatible formats)
• USB 2.0 plug & play
• Auto and manual trigger modes
• Hands-free stand included
• Designed for retail and warehouse use

Key Features

• Wired USB connection for stable performance
• Reads barcodes from paper and mobile screens
• White LED illumination with red aiming light
• 30 frames per second scanning speed
• Durable ABS + PC housing
• Compact desktop-friendly design

Scanning Performance

• Image Sensor: CMOS
• Optical Resolution: 640 × 480
• Scan Speed: 30 frames/second
• Illumination: White LED
• Aimer: Red LED
• Scan Modes:
• Manual trigger
• Auto (continuous scanning with stand)

Performance may vary depending on barcode size, print quality, and lighting conditions.

Decoding Capability

1D Codes

UPC/EAN, Code 39, Code 128, Code 93, Codabar, Interleaved 2 of 5, GS1 DataBar and other common 1D formats.

2D Codes

QR Code, Data Matrix, PDF417 (standard versions), and common 2D symbologies.

Suitable for retail POS, inventory labels, and healthcare data matrix formats.

Connectivity & Compatibility

• Interface: USB 2.0
• Plug & Play: Yes (USB HID mode)

Compatible Systems

• Windows
• Android (USB OTG supported devices)

No SDK included. For standard POS use, driver installation is typically not required.

Physical Specifications

• Dimensions: 165 × 70 × 90 mm
• Weight (single unit gross): Approx. 0.305 kg
• Material: ABS + PC
• Color Options: Black or Gray
• Stand: Included

Electrical Specifications

• Powered via USB
• No external power supply required

Applications

• Supermarket checkout
• Retail stores
• Warehouse inventory
• Library systems
• Healthcare barcode reading
• POS systems

Packaging

• 1 scanner
• USB cable
• Hands-free stand
• User guide
• Retail box packaging

Master carton: 50 units per carton.

Warranty & Support

• Warranty: 1 Year (hardware)
• After-Sales Service:
• Repair
• Replacement (as per warranty terms)
• Spare parts support

UAE technical support available via REPRONIX®.

FAQ - REPRONIX® RX-2402

Q: Can this scanner read QR codes?
A: Yes, it supports standard QR codes and common 2D barcodes.

Q: Does it support medical Data Matrix (GS1)?
A: It supports GS1 DataBar and standard Data Matrix formats used in retail and healthcare labeling.

Q: Is it plug and play?
A: Yes, via USB HID mode for most POS systems.

OEM Positioning Statement

The REPRONIX® RX-2402 is an OEM-configured barcode scanner manufactured under private mold production. Technical specifications are based on supplier documentation and may vary depending on firmware version.

Last Updated: 15 February 2026
