Enterprise-Grade Industrial Label Printing with Advanced Connectivity

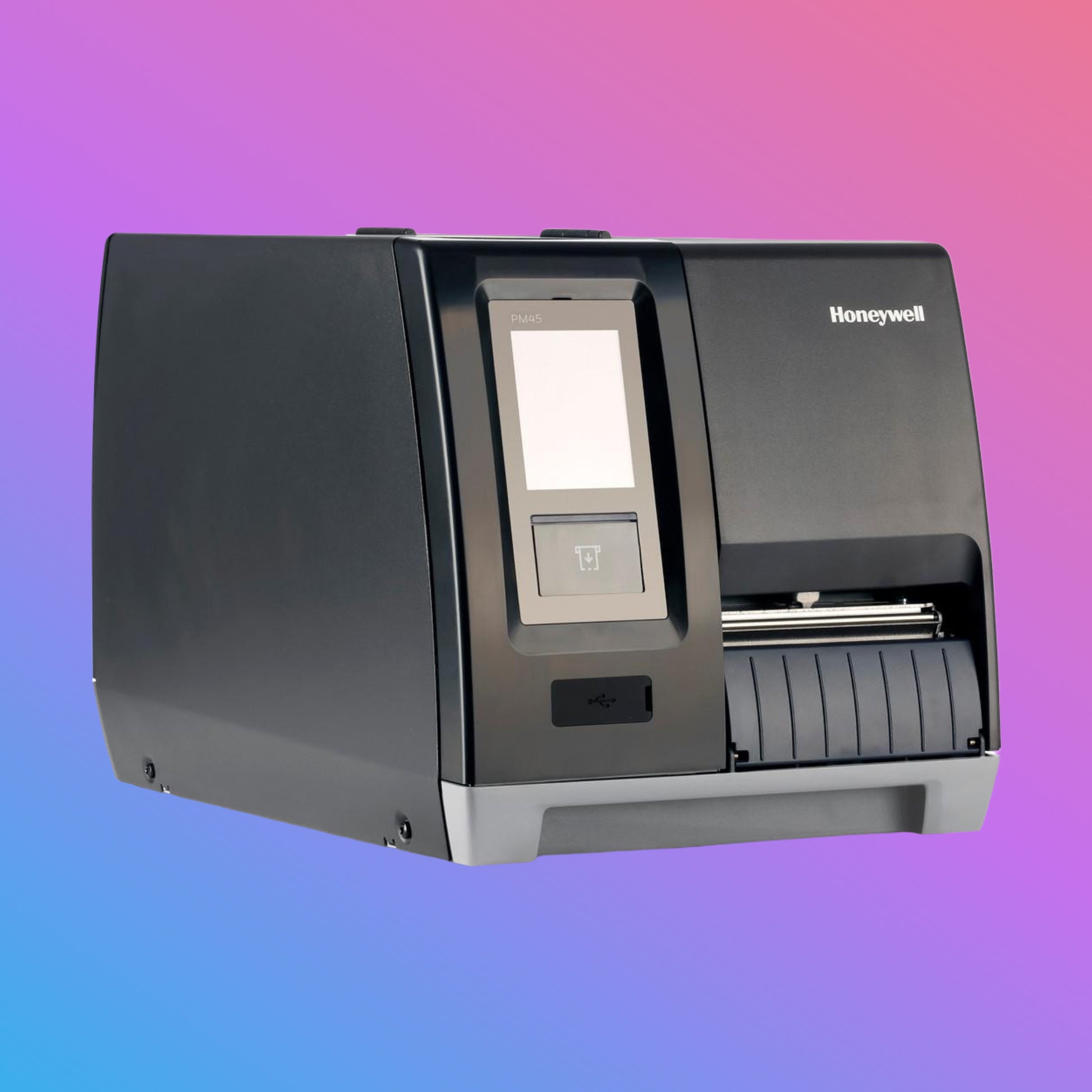

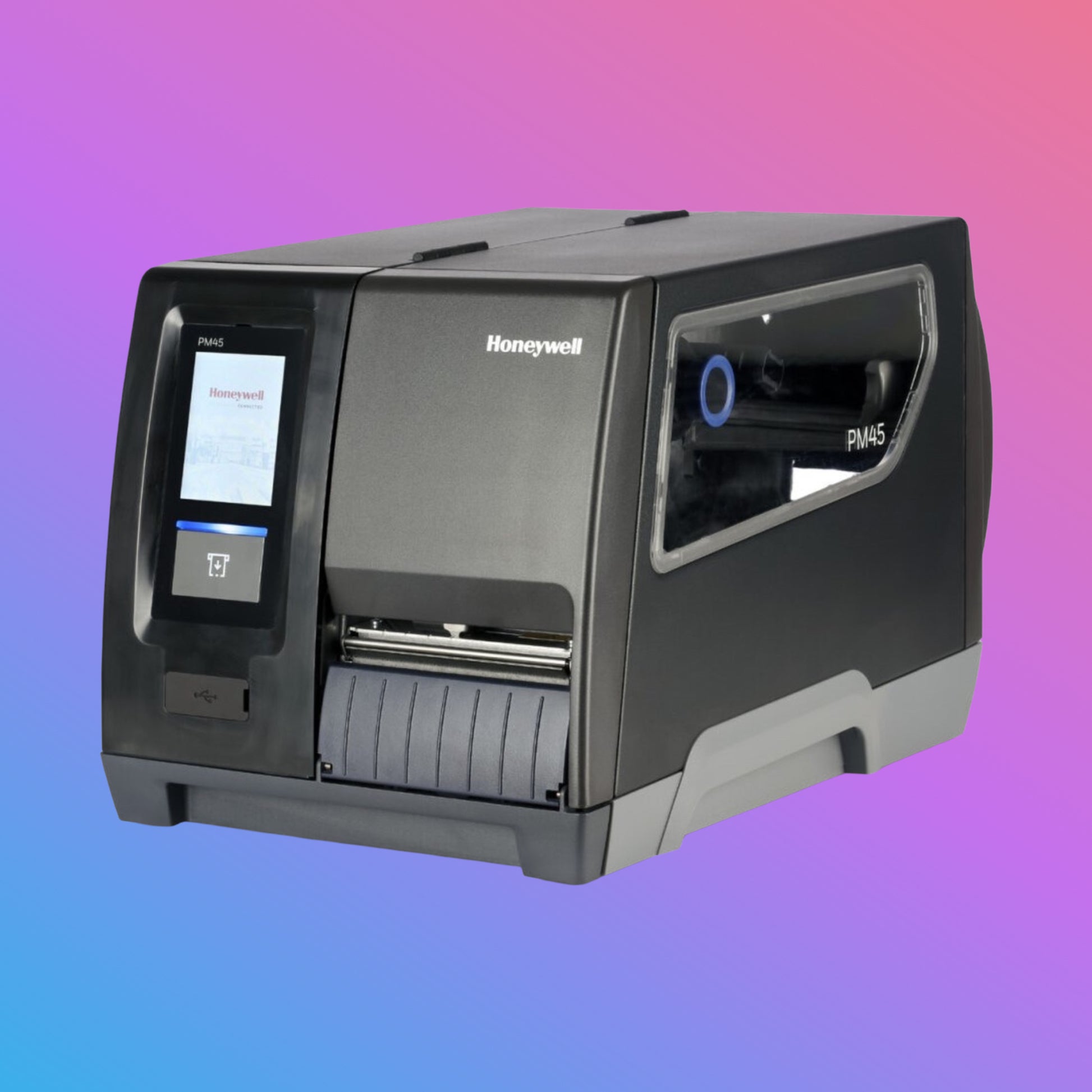

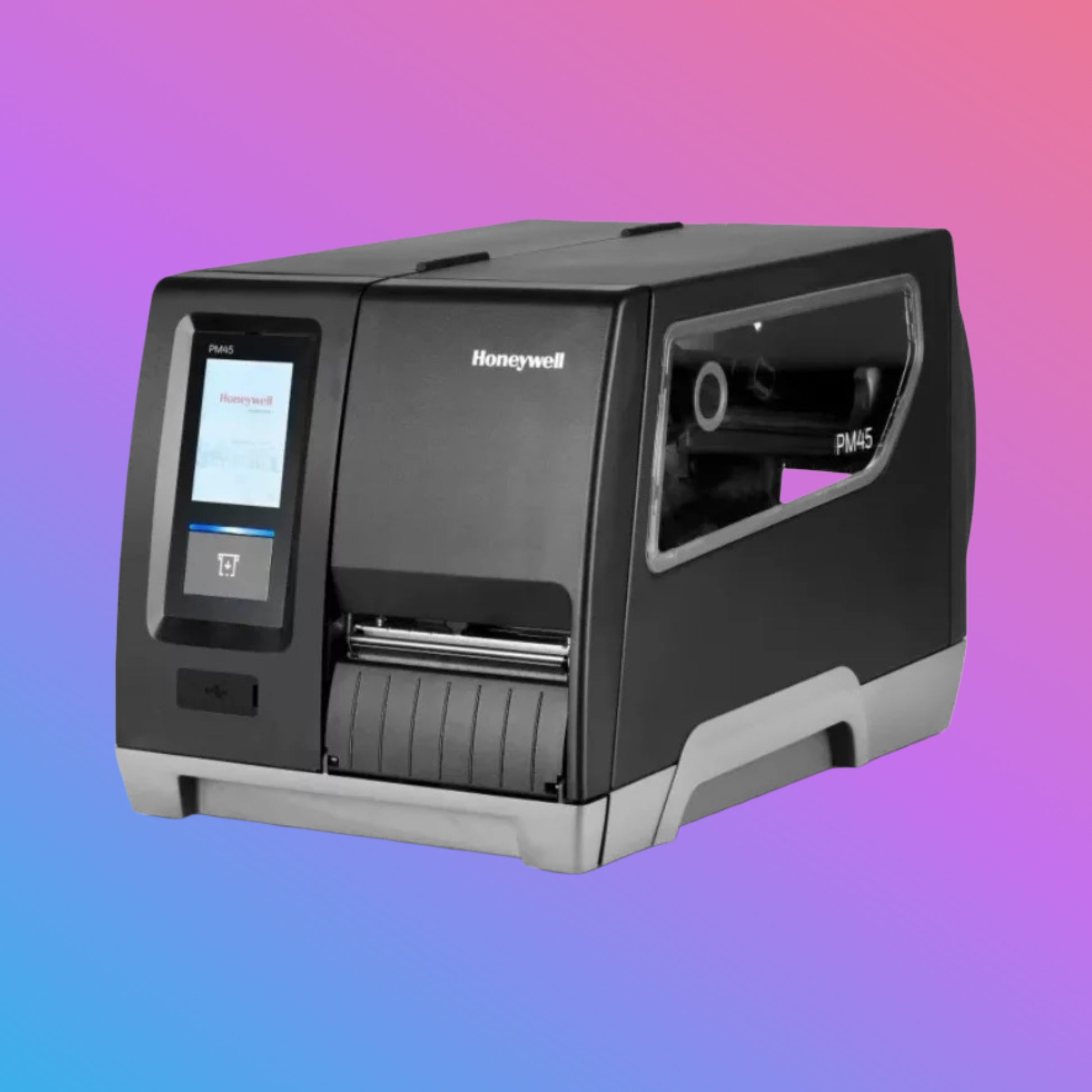

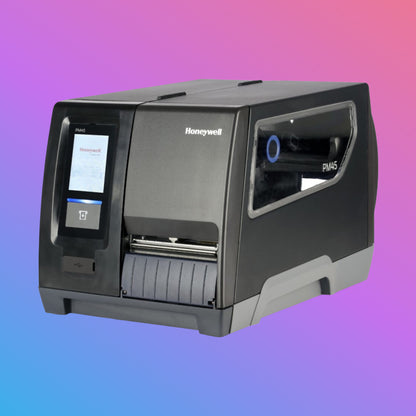

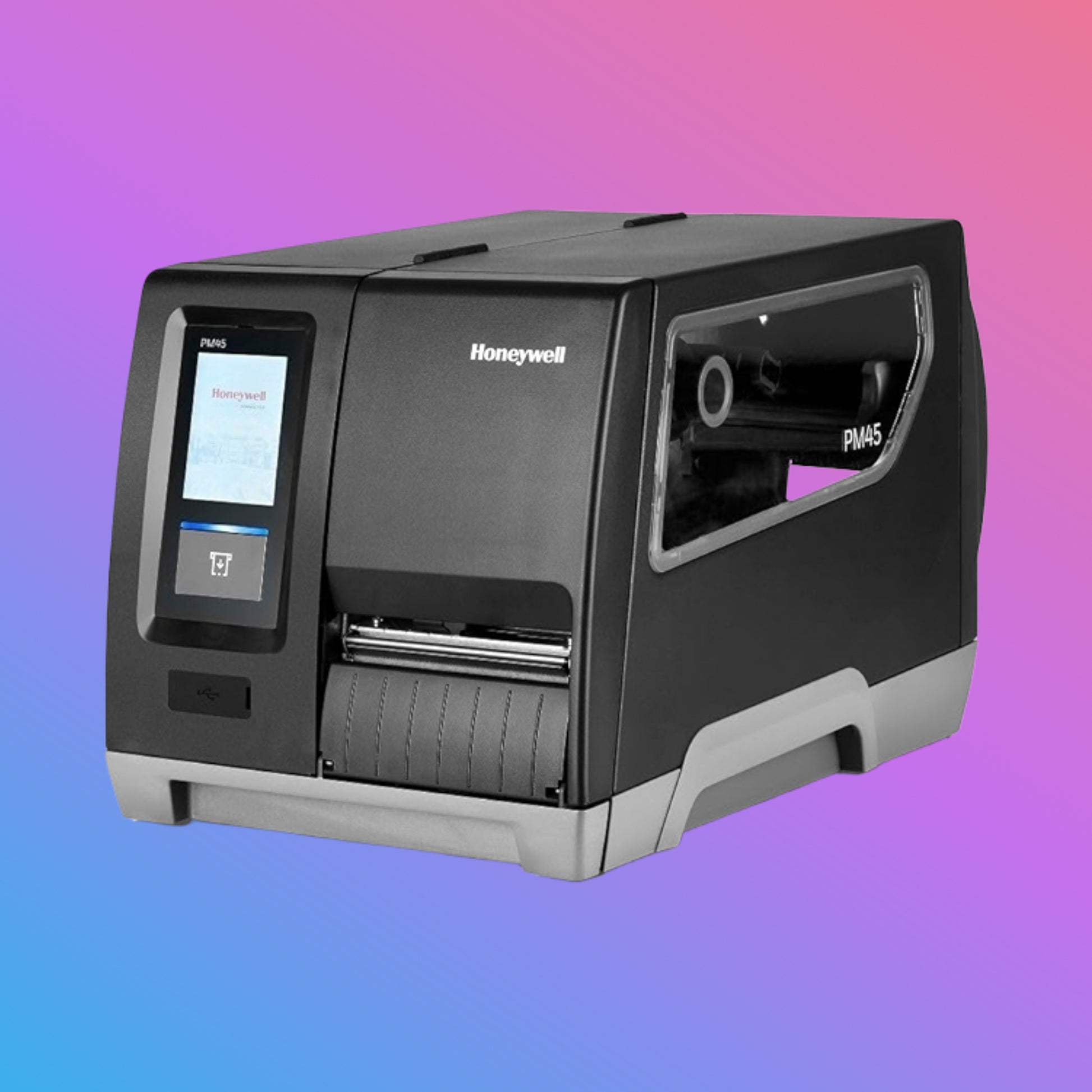

The Honeywell PM45A Industrial Barcode Printer is designed for high-volume, high-precision label printing in demanding industrial environments. Built on Honeywell’s industrial print platform, the PM45A supports fast print speeds, advanced network connectivity, and scalable options including RFID and WWAN.

Suitable for manufacturing, warehousing, logistics, food processing, and pharmaceutical labeling operations across the UAE.

Overview

The PM45A delivers:

• Print speeds up to 14 inches per second
• High registration accuracy (±0.5 mm)
• Multiple print resolutions (203, 300, 406, 600 dpi)
• Advanced Ethernet, WLAN, Bluetooth, and optional WWAN connectivity
• Smart Printing capabilities without host PC dependency

It is engineered for continuous industrial operation where reliability and supply chain traceability are critical.

Key Features

• Up to 14 ips high-speed industrial printing
• Print accuracy up to ±0.5 mm
• Full touch UI interface
• Supports WWAN (CAT4 LTE) for remote deployments
• RFID ready (optional, region dependent)
• Smart Parse embedded tool for label adjustment
• Honeywell Operational Intelligence support
• All-metal print mechanism for durability
• Tool-free printhead and platen roller replacement

Print Specifications

Print Speed:

• 203 dpi: 2–14 ips
• 300 dpi: 2–12 ips
• 406 dpi: 2–10 ips
• 600 dpi: 2–6 ips

Maximum Print Width:

• Up to 108 mm (203 dpi)

Maximum Print Length:

• Up to 4.8 m (203 dpi)

Resolutions Available:

• 203 dpi
• 300 dpi
• 406 dpi
• 600 dpi

Media & Ribbon Specifications

Media Type:

• Labels, tags, linered media

Media Width:

• 19 mm to 114 mm

Ribbon Types:

• Wax
• Wax/Resin
• Resin

Ribbon Core:

• 1 inch (25 mm)

Ribbon Capacity:

• Up to 450 m (PM45)

Media Sensing:

• Gap
• Black mark
• Notch
• Continuous
• Ribbon low/end sensing
• Label taken sensing

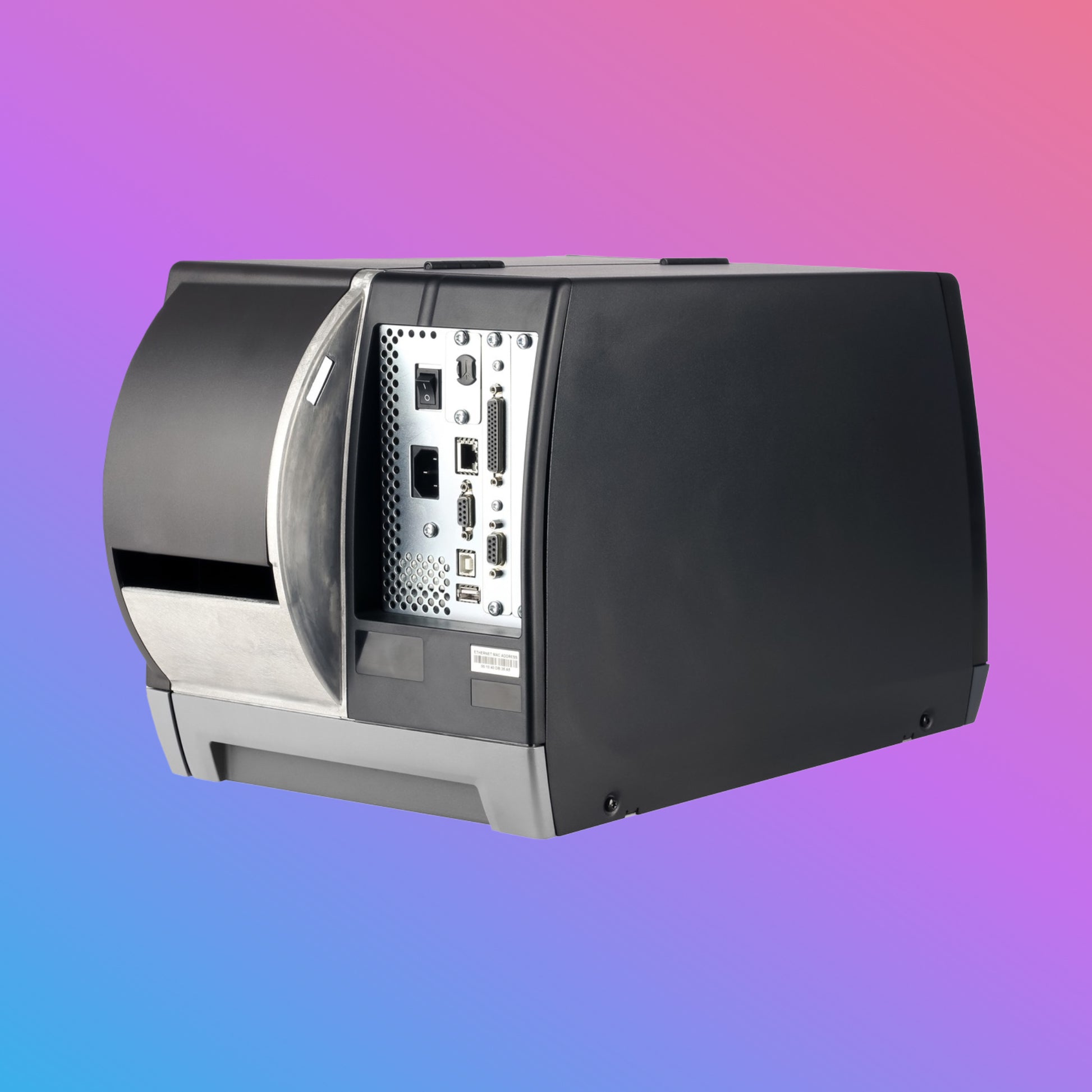

Connectivity & Interfaces

Standard Interfaces:

• Ethernet 10/100 Mbps
• USB 2.0 Host
• USB 2.0 Device
• RS-232

Optional:

• Parallel
• WLAN (802.11 a/b/g/n/ac)
• Bluetooth 5.0
• WWAN CAT4 LTE
• RFID UHF (region dependent)
• Industrial I/O board
• Applicator interface

Supported Network Protocols:

• TCP/IP
• FTP/SFTP
• SNMP v1/2c/3
• HTTP/HTTPS
• IPv4 & IPv6
• SMTP
• DHCP

Supported Print Languages

• Fingerprint (FP)
• Direct Protocol (DP)
• IPL
• ZSim2 (ZPL-II)
• DPL
• PDF
• XML-enabled for SAP & Oracle systems

Operating Environment

Operating Temperature:
+5°C to +40°C

Storage Temperature:
-20°C to +70°C

Humidity:
20%–85% non-condensing

Physical Specifications

PM45:

• 483 x 295 x 284 mm
• 13.2 kg

PM45c:

• 432 x 181 x 253 mm
• 12.6 kg

Typical Applications

• Manufacturing labeling
• Warehouse & distribution
• Pharmaceutical labeling
• Food & beverage compliance labels
• Automotive part identification
• Track & trace logistics

Why Choose REPRONIX®

• Operated by UAE-licensed business (POSTECH PLUS COMPUTER TRADING LLC)
• Clear AED pricing
• UAE-only service for controlled logistics
• Honest lead-time communication
• Professional documentation and invoicing

We focus on transparent and compliant supply — not aggressive sales tactics.

Frequently Asked Questions

Q: Does the PM45A support RFID printing?
A: Yes, RFID UHF support is available as an optional configuration depending on regional compliance.

Q: Can this printer replace older Intermec or Honeywell models?
A: Yes, the PM45A supports multiple print languages and is designed for integration into mixed printer environments.

Q: Is WWAN connectivity available?
A: Certain models support CAT4 LTE WWAN for remote or distributed industrial deployments.

Delivery – UAE Only

Delivery is available within the United Arab Emirates.
Lead time depends on configuration and stock availability.
For project or bulk requirements, please contact us before confirmation.

Contact REPRONIX®

Email: info@repronix.com
Phone / WhatsApp: +971 50 739 1234

Bur Dubai, Dubai 44245
United Arab Emirates

Disclaimer

Specifications are provided for reference and may change without notice. Product availability, configuration options, and compliance features may vary by region. Images are illustrative. Please confirm final specifications before order confirmation.

Last updated: 14 February 2026
