Fast, Hands-Free Scanning for Modern Retail Checkouts

Product Overview

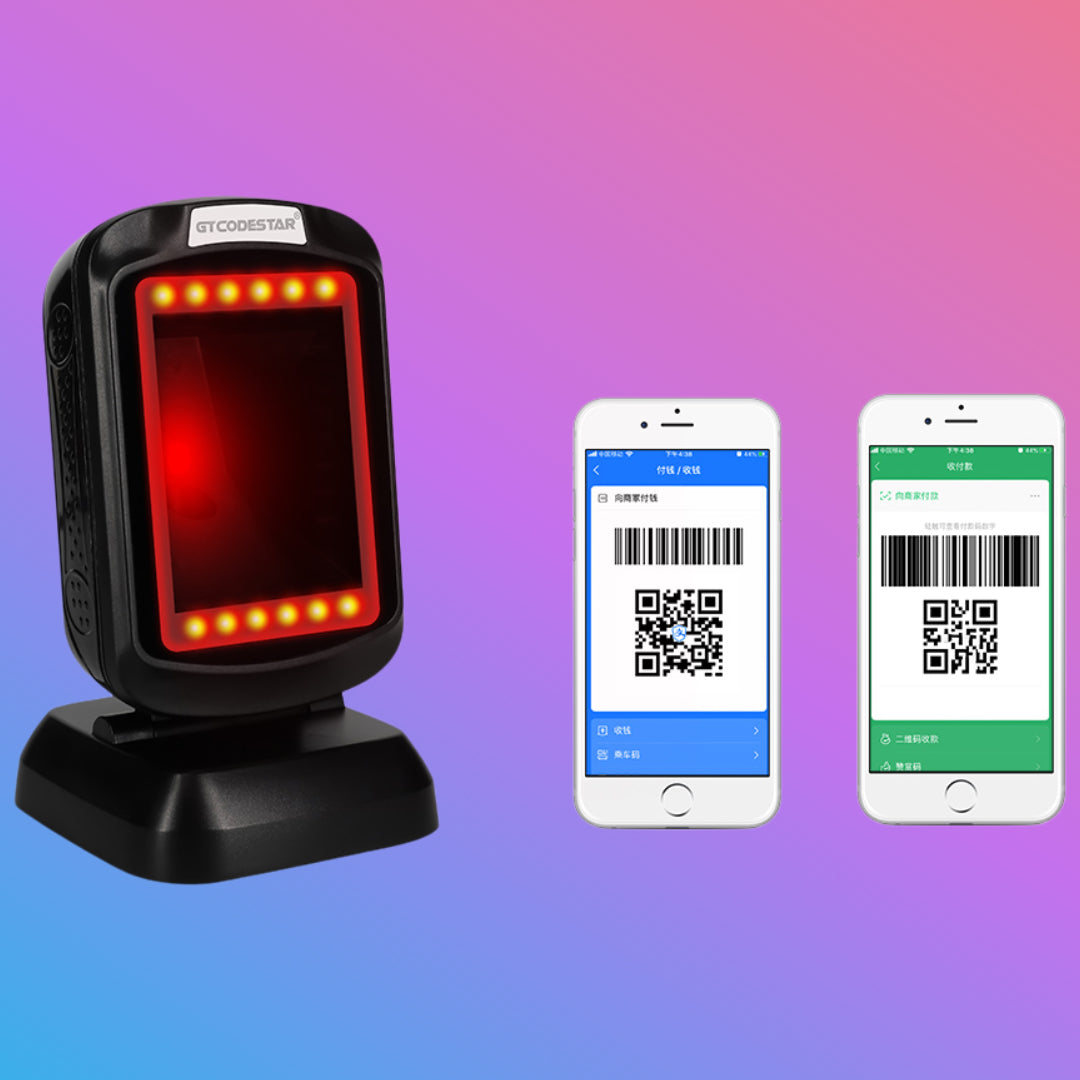

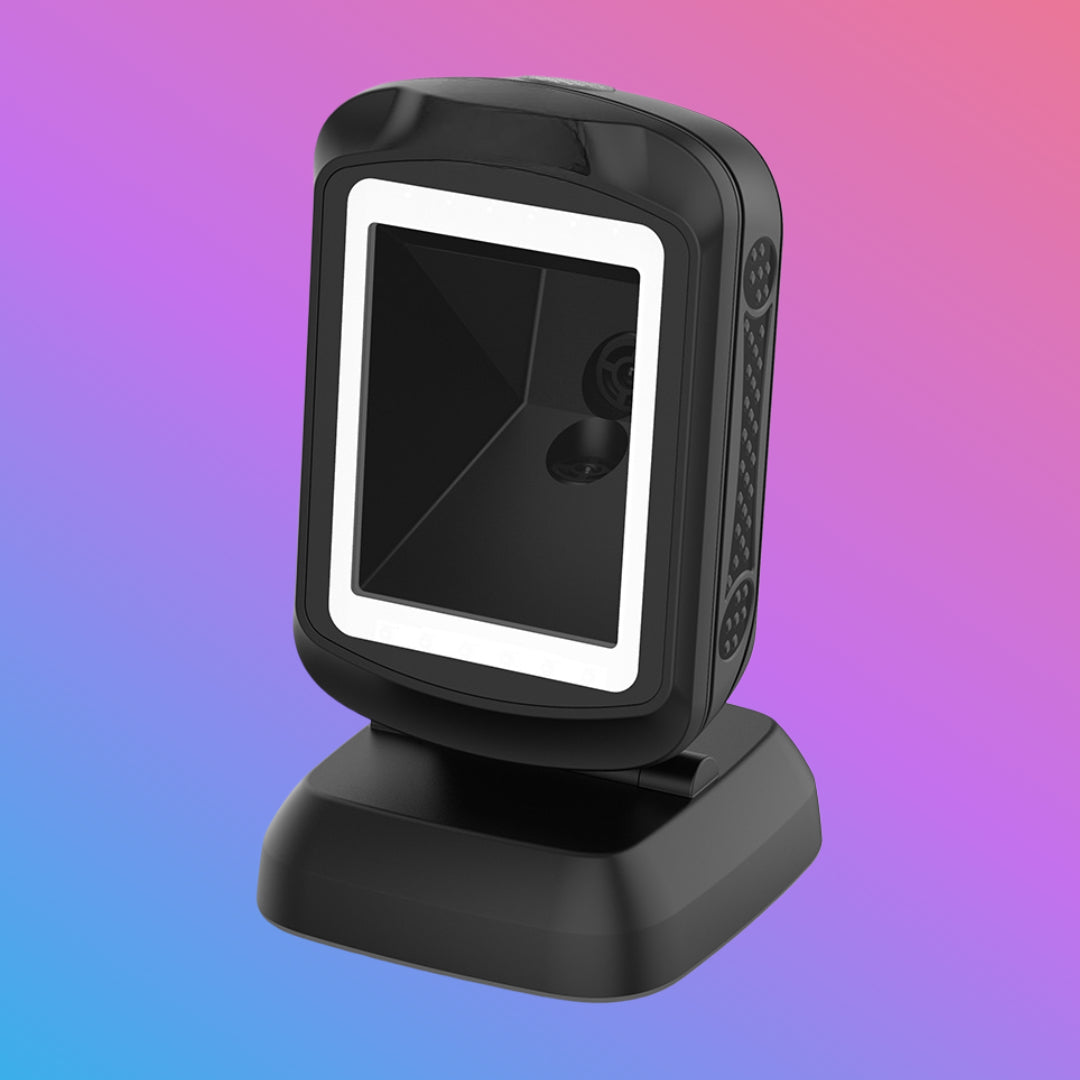

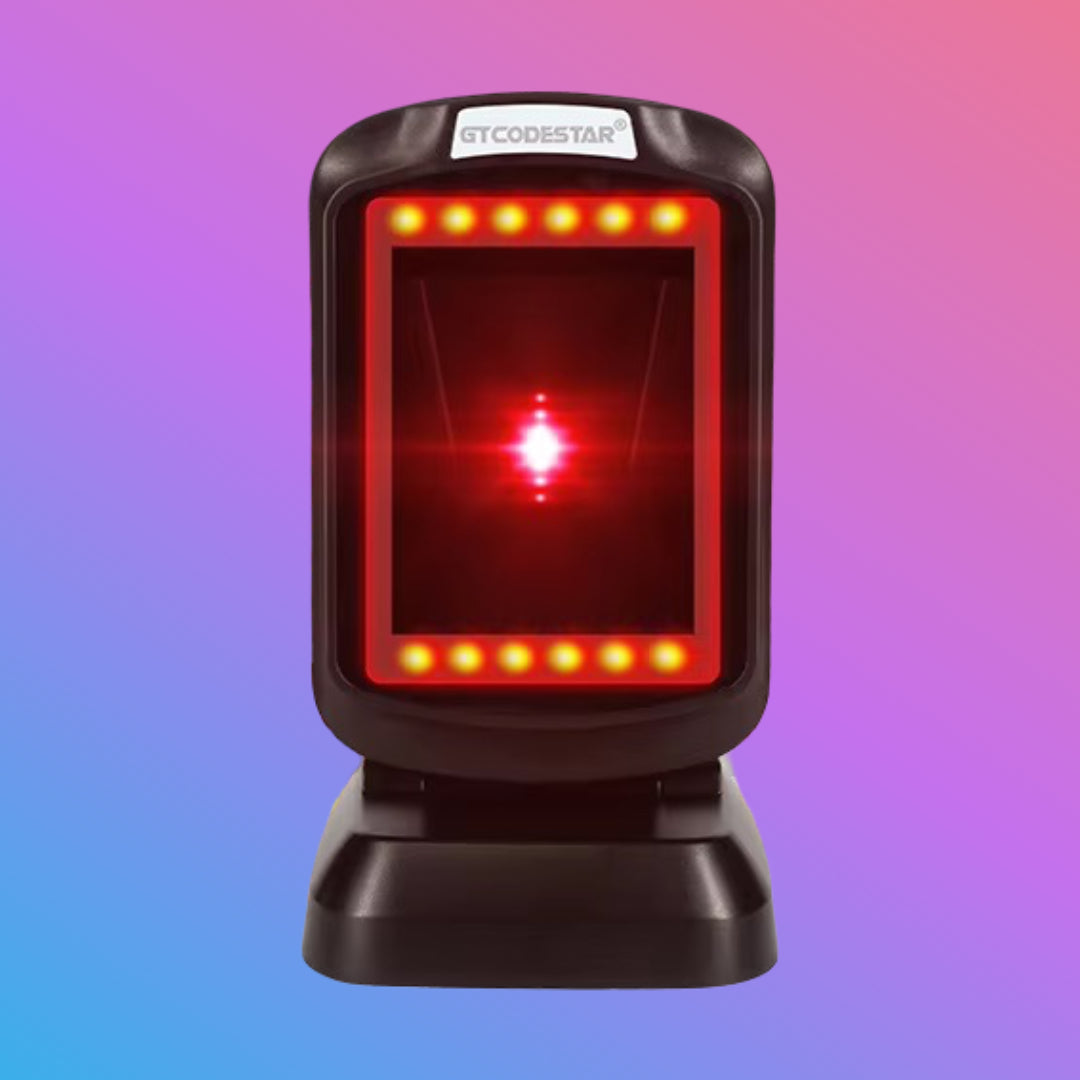

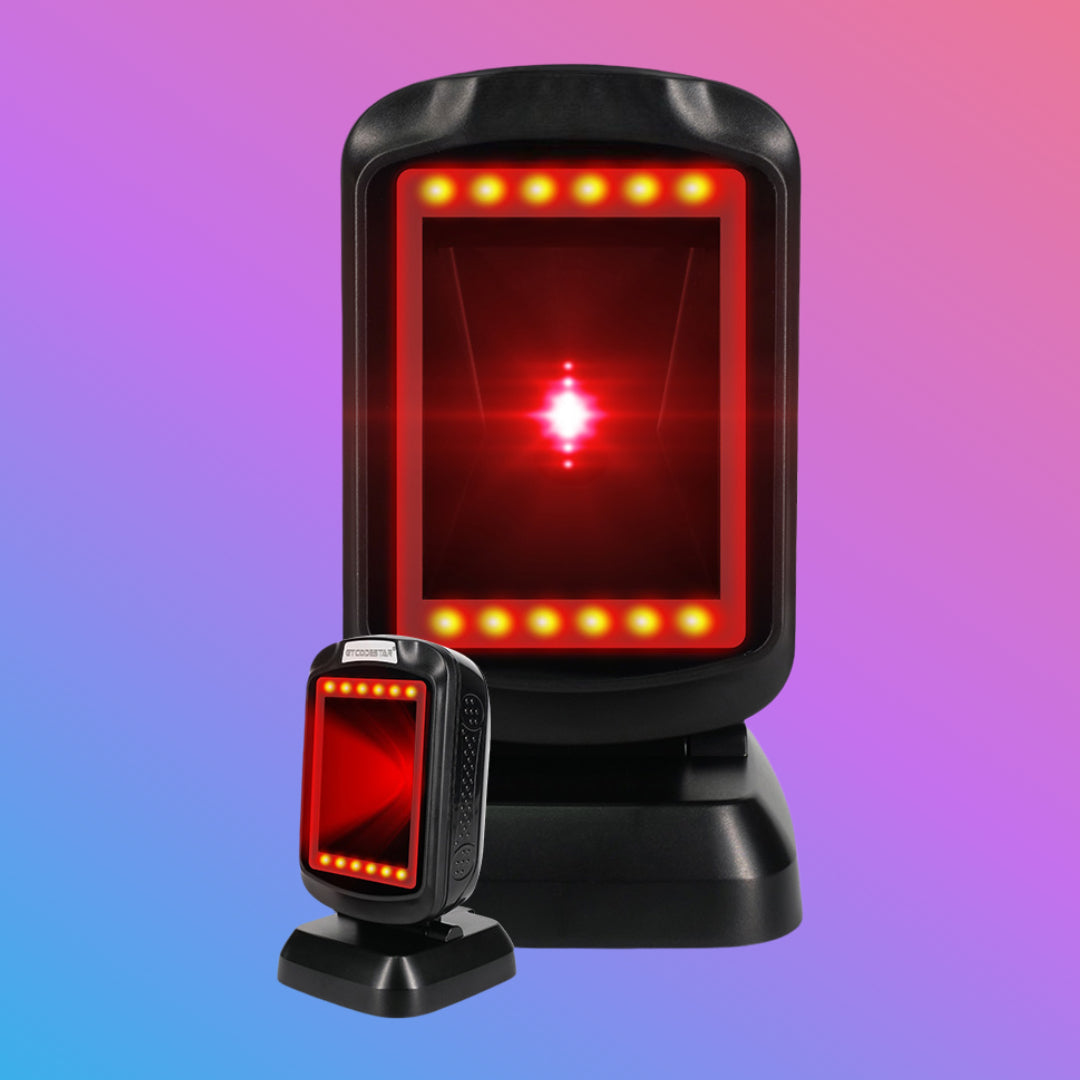

The GT-9208 is a high-speed omnidirectional desktop barcode scanning platform designed for supermarkets, retail counters, and POS checkout environments where fast, hands-free scanning improves transaction speed and cashier efficiency.

Powered by a 32-bit ARM MCU with DSP processing and a high-resolution planar CMOS sensor, the GT-9208 reliably reads both 1D and 2D barcodes, including QR codes, from paper labels and mobile phone screens.

Its compact desktop design, wide scanning angles, and strong decoding performance make it well-suited for high-volume retail operations.

Key Features & Highlights

• ✅ Omnidirectional Hands-Free Scanning – No need to align barcodes
• ✅ High Scan Speed – Up to 300 scans per second
• ✅ 1D & 2D Barcode Support – Including QR, PDF417, Data Matrix, Aztec
• ✅ High-Resolution CMOS Sensor – 1600 × 900 planar CMOS
• ✅ Mobile Screen Reading – Reads barcodes from phone displays
• ✅ Wide Scanning Angles – 360° roll, ±45° pitch & yaw
• ✅ Fast Motion Tolerance – Up to 3.24 m/s
• ✅ Visual & Audio Feedback – LED indicator and buzzer
• ✅ Compact Desktop Form Factor – Saves counter space
• ✅ Durable Build – ABS + PC housing with drop resistance
• ✅ Multi-Language Support – Suitable for global POS systems

Barcode Decoding Capability

1D Barcodes Supported:
UPC-A, UPC-E, EAN-8, EAN-13, JAN, Code 39 (Standard & Full ASCII), Code 93, Code 128, ITF, Codabar, RSS-14, GS1, UCC-128, Code 11

2D Barcodes Supported:
QR Code, Micro QR, PDF417, Data Matrix, Aztec

Technical Specifications (Summary)

Model: GT-9208
Scanner Type: Omnidirectional Desktop Barcode Scanner
Scanning Technology: Image-based CMOS
Sensor: Planar CMOS 1600 × 900
Processor: 32-bit ARM MCU + DSP

Scan Speed:
Up to 300 scans/second

Optical Resolution:
4 mil (Code39)

Interfaces:
USB (RS232 available on request)

Power Supply:
DC 5V / 2A

Power Consumption:
1.60W (working)
0.80W (standby)
2.34W (maximum)

Dimensions:
146.99 × 85.27 × 89.97 mm

Weight:
Approx. 294 g (without cable)

Performance & Reading Range

• Motion Tolerance: 3.24 m/s
• Error Rate: 1 in 5,000,000
• Print Contrast: ≥25%

Typical Reading Depth:

• 5 mil Code39: 1 – 12 cm
• 13 mil UPC-A: 2 – 30 cm
• 20 mil Code39: 1 – 30 cm
• QR / 2D Codes: Up to 42 cm (payment codes)

Environmental & Durability

• Operating Temperature: 0°C to 50°C
• Humidity: 20% – 85% (non-condensing)
• ESD Protection: Up to 15 kV
• Drop Resistance: 1.5 m free fall onto concrete
• IP Rating Options: IP52 (standard), IP54 / IP67 available

System Compatibility

• Windows (XP / 7 / 8 / 10)
• Linux
• Android
• macOS

Supports virtual keyboard mode for POS integration.

Typical Applications

• 🛒 Supermarkets & grocery stores
• 🧾 Retail checkout counters
• 📱 Mobile payment & QR code scanning
• 🏪 Convenience stores
• 🧮 POS systems & billing counters

Frequently Asked Questions (FAQ)

Q: Is the GT-9208 suitable for supermarket checkout counters?

A: Yes. The GT-9208 is designed for high-speed, hands-free scanning at supermarket and retail POS counters, improving checkout efficiency.

Q: Can the scanner read QR codes from mobile phone screens?

A: Yes. The CMOS imaging sensor supports reliable scanning of QR codes and other 2D barcodes from mobile phone displays.

Q: Does the GT-9208 support both 1D and 2D barcodes?

A: Yes. It supports a wide range of 1D barcodes as well as 2D formats such as QR Code, PDF417, Data Matrix, and Aztec.

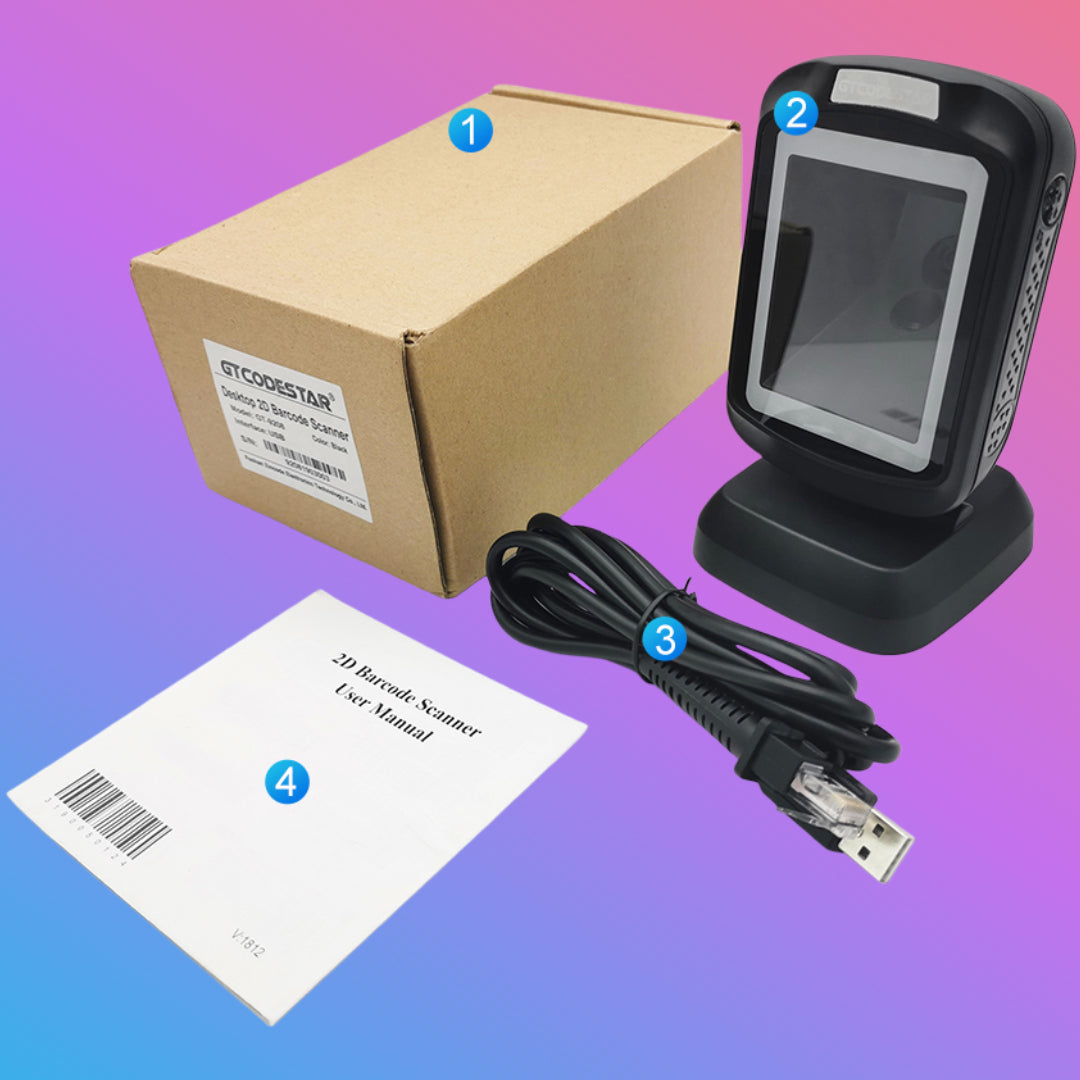

What’s in the Box

• GT-9208 desktop barcode scanner
• Interface cable
• User documentation

Disclaimer

Product specifications may change without notice.
All trademarks and brand names are the property of their respective owners and are used for identification purposes only.
