Maximum Throughput Scanning for High-Volume Retail Checkouts

Product Overview

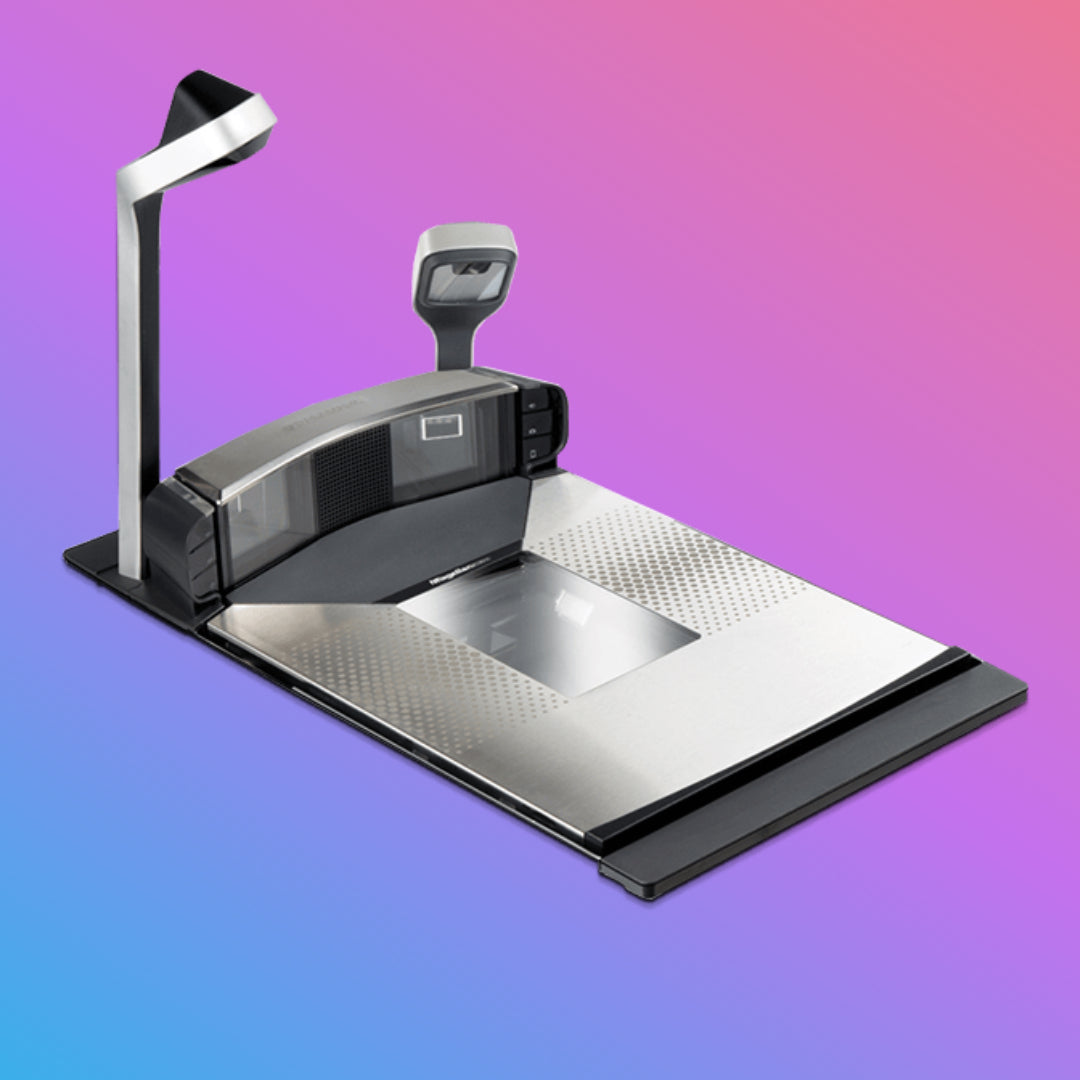

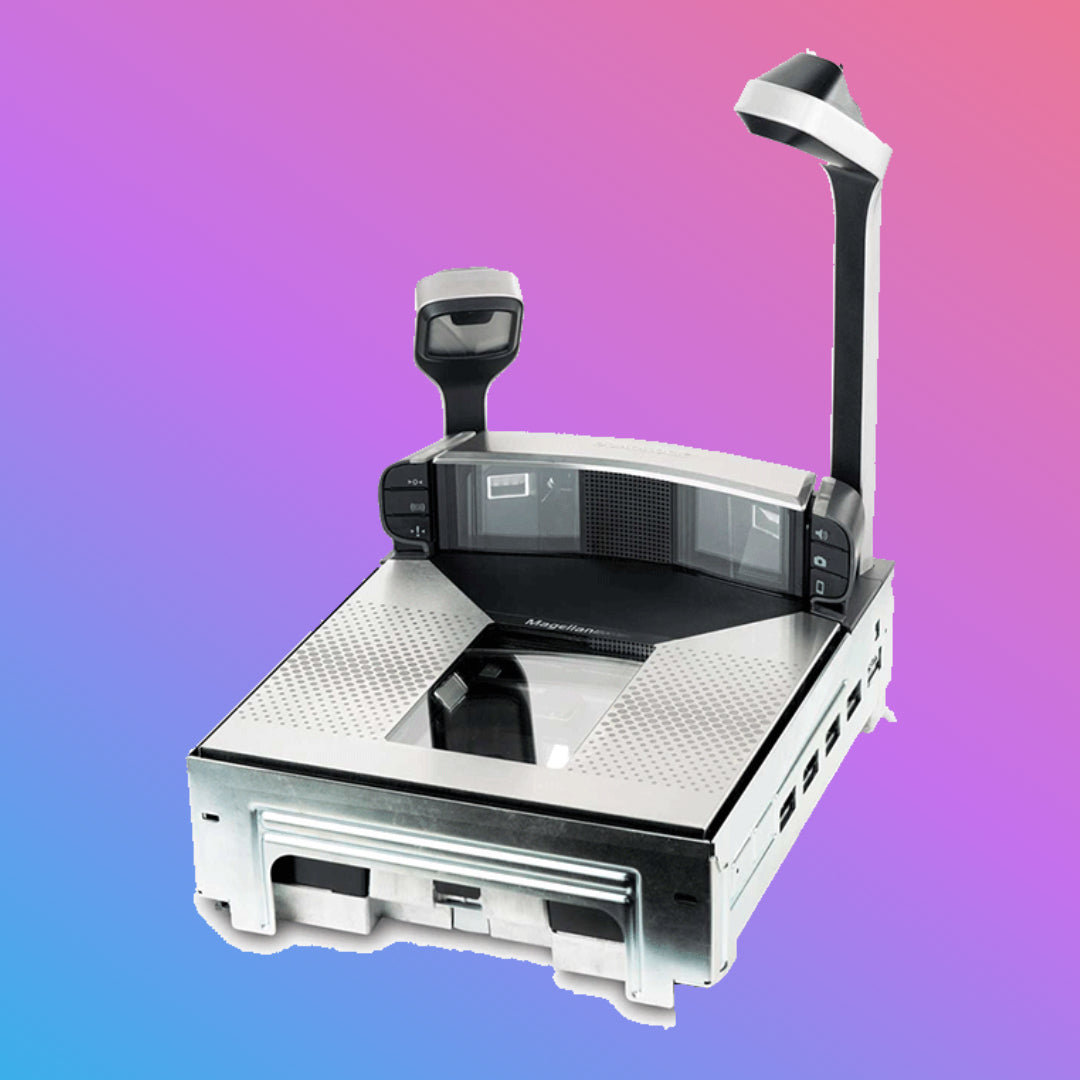

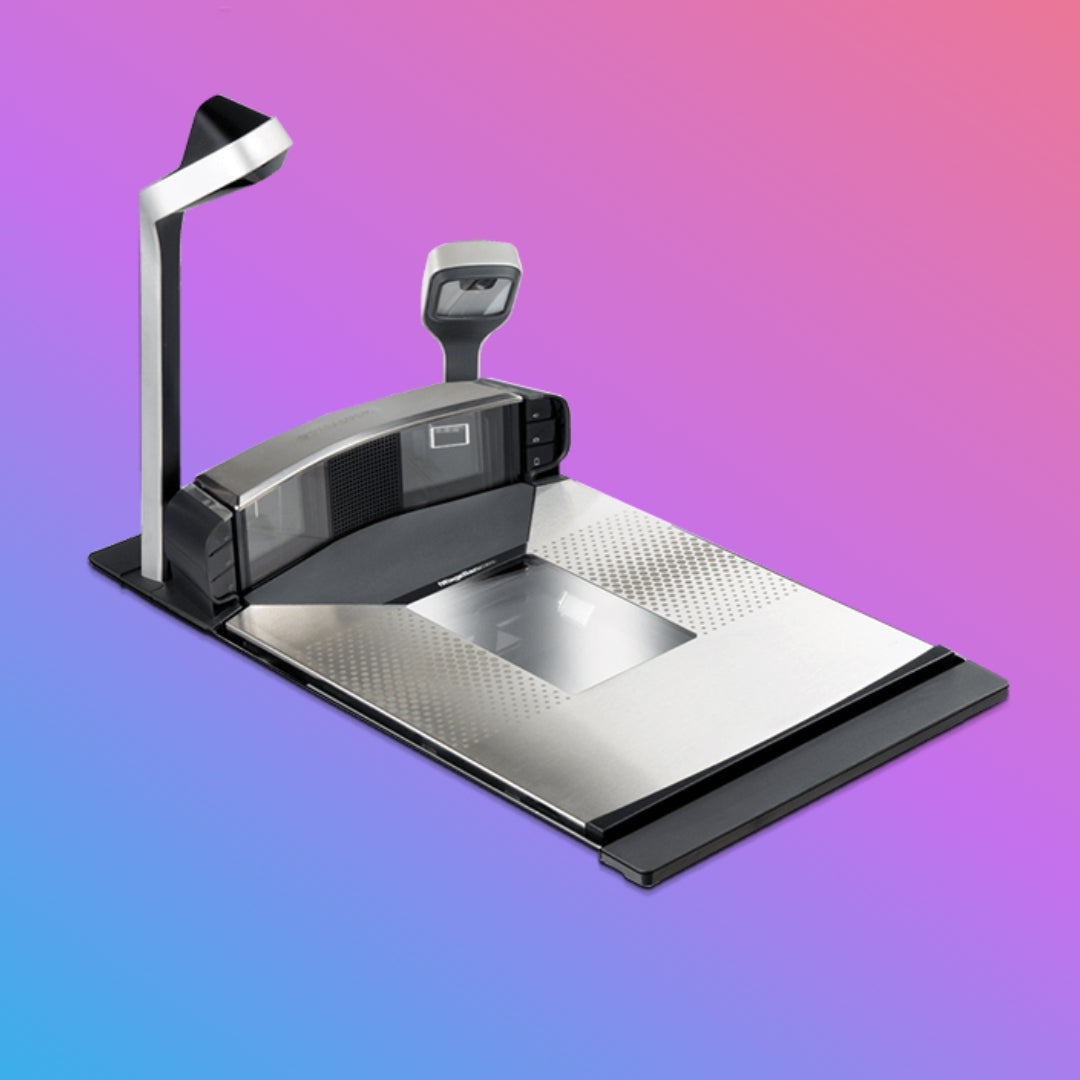

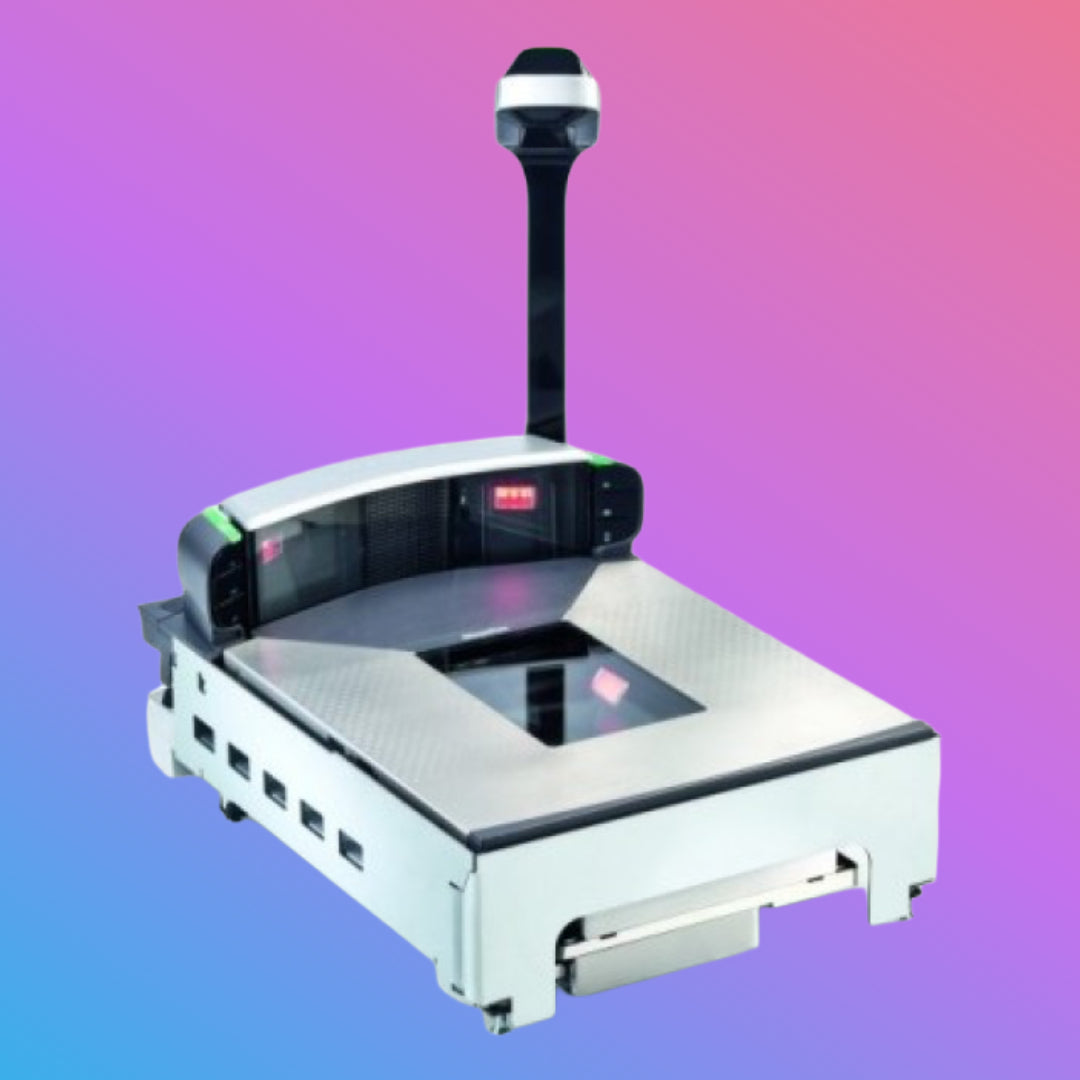

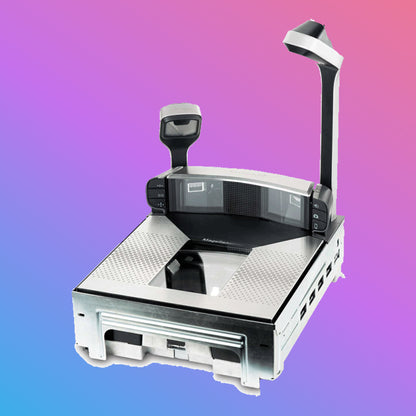

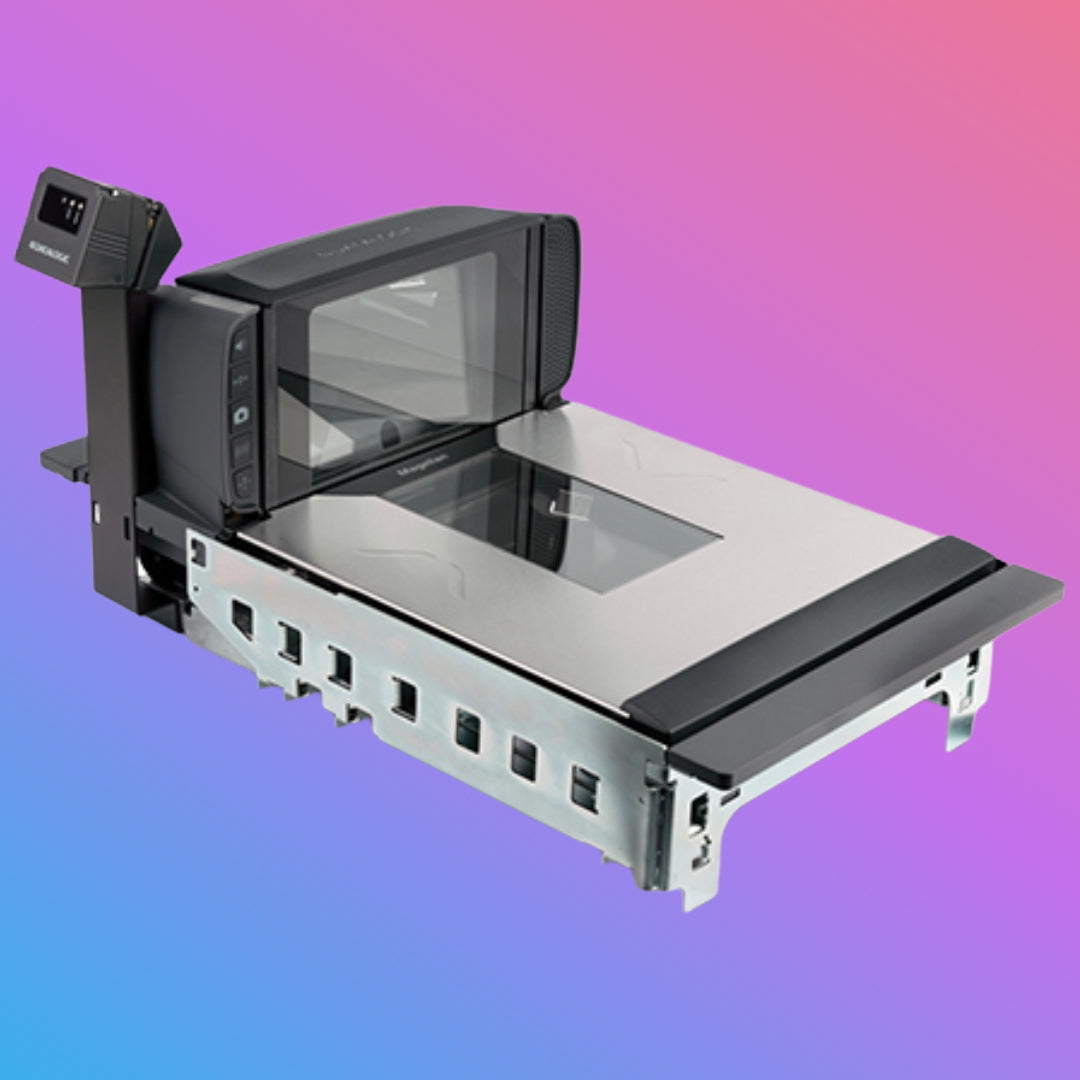

The Datalogic Magellan™ 9800i is a premium bi-optic installation scanner designed for high-throughput retail checkout environments.
It is the first scanner in its class built entirely on advanced digital imaging technology, enabling fast and reliable reading of both 1D and 2D barcodes without requiring item orientation by the cashier.

With its slim housing, low bonnet height, and six-side plus customer-facing scanning, the Magellan 9800i improves ergonomics, accelerates transactions, and supports modern retail workflows including mobile coupons and e-commerce interactions.

Key Features & Highlights

• ✅ Advanced Digital Imaging (All Planes) – Seamless reading of 1D & 2D barcodes from all sides
• ✅ High-Throughput Performance – Designed for fast, uninterrupted retail scanning
• ✅ Optional Top-Down Reader (TDR) – Expands scan volume and adds customer-facing mobile scanning
• ✅ Customer-Facing Coupon Reader – Supports mobile phone and paper coupons during checkout
• ✅ Slim, Space-Saving Design – Low bonnet height for flexible POS and ADA-friendly layouts
• ✅ Optical & Acoustic Feedback – Clear visual and audio confirmation improves cashier efficiency
• ✅ Remote Management & Diagnostics – Supports OPOS, JavaPOS, IBM Director, Wavelink Avalanche
• ✅ Loss Prevention Technologies – ScaleSentry™, ScanSentry™, and EAS integration options
• ✅ Top-Accessible Service Port – Enables maintenance and software updates without removing the unit
• ✅ Optional Adaptive Scale – Supports professional precision weighing for retail environments

Technical Specifications (Summary)

Product Series: MAGELLAN™ 9800i
Brand: Datalogic
Scanner Type: Bi-Optic Installation Scanner
Decoding Capability:

• 1D / Linear Codes (GS1 DataBar™ included)
• Stacked Codes (PDF417, MicroPDF417, GS1 Composites)
• 2D Codes (QR Code, Data Matrix, Aztec, Micro QR)
• Optional Digimarc® Barcode support

Scanning Technology:
Advanced digital imagers in all reading planes (6-side + customer-facing module)

Interfaces:
RS-232, USB, IBM 46XX (multi-interface support)

Power Requirements:
100–240 VAC, 50–60 Hz
Typical Operating Power: ~12 W

Environmental Ratings:
Operating Temperature: 10°C to 40°C
Humidity: 5–95% (non-condensing)
ESD Protection: Up to 25 kV (air discharge)

Glass Type: Sapphire Glass
Housing: Slim, retail-grade installation design

Warranty:
1-Year Manufacturer Warranty

Loss Prevention & Retail Security

• All-Weighs™ Scale Platter – Allows weighing of long or bulky items beyond standard platter size
• ScaleSentry™ Technology – Detects items placed outside the weighing surface to prevent under-weighing
• ScanSentry™ Monitoring – Alerts when items pass through the scan zone without a successful read
• EAS Integration Options – Supports Sensormatic, Checkpoint, and compatible EAS systems

Enterprise & IT Features

• Remote diagnostics and reporting
• Host-based firmware and configuration updates
• Compatibility with major POS software ecosystems
• Centralized device management for large retail chains

Typical Applications

• High-volume supermarkets & hypermarkets
• Department stores & big-box retail
• Self-checkout lanes
• Omni-channel retail with mobile coupons
• Retail environments requiring integrated scale & EAS

Frequently Asked Questions (FAQ)

Q: What types of barcodes can the Magellan 9800i read?

A: The Magellan 9800i reads all standard 1D barcodes, stacked codes, and 2D barcodes including QR Code, Data Matrix, PDF417, and GS1 composite formats. Optional support for Digimarc® barcodes is available.

Q: Can customers scan coupons from mobile phones at checkout?

A: Yes. The scanner includes a customer-facing imaging module that allows customers to scan barcodes from mobile phone screens or paper coupons while the cashier continues scanning items in parallel.

Q: Is the Magellan 9800i suitable for high-volume retail environments?

A: Yes. It is specifically designed for high-throughput retail checkouts, offering fast multi-plane scanning, ergonomic design, remote management, and optional integrated weighing and loss-prevention features.

Important Notes

• Optional features such as scales, EAS, Digimarc®, and top-down readers depend on configuration
• Installation and calibration should be performed by qualified personnel
• POS software compatibility depends on system configuration

Disclaimer

Product specifications and features are subject to change by the manufacturer without notice.
Datalogic®, Magellan™, and all related trademarks are the property of Datalogic S.p.A. and/or its affiliates and are used for identification purposes only.
